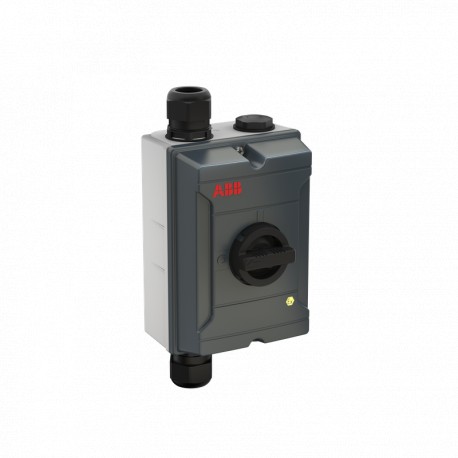

ABB 1SCA152720R1001 1SCA152720R1001 ABB Int. ATEX OTA16S6BX box disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA152720R1001 ABB Int. ATEX OTA16S6BX box disconnector

1SCA152720R1001

152720

ABB

1 Pcs.

Int. ATEX OTA16S6BX box disconnector Int. Disconnector in box ATEX OTA16S6BX ATEX enclosed safety switches are designed for a potentially explosive atmosphere and are made according to ATEX directive 2014/34/EU. The ATEX class is Ex tc III T70⁰C Dc, used in zone 22. Typical applications for ATEX switches are refineries, mills, conveyor belt in hazardous areas, and dusty environments. The products are delivered with ATEX cable glands. The switches can be used in EMC environment, when used together with EMC cable glands.

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
OTA16S6BX
Product ID:
1SCA152720R1001
EAN:
6417019839189
Catalog Description:
OTA16S6BX ATEX EMC Safety switch
Long Description:
ATEX enclosed safety switches are designed for a potentially explosive atmosphere and are made according to ATEX directive 2014/34/EU. The ATEX class is Ex tc III T70⁰C Dc, used in zone 22. Typical applications for ATEX switches are refineries, mills, conveyor belt in hazardous areas, and dusty environments. The products are delivered with ATEX cable glands. The switches can be used in EMC environment, when used together with EMC cable glands.
\n

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85363010
Country of Origin:
Bulgaria (BG)

Popular Downloads

Data Sheet, Technical Information:\n1SCC340015C0201
Instructions and Manuals:\n1SCC340166M0205

Dimensions

Product Net Width:
160 mm
Product Net Height:
230 mm
Product Net Depth / Length:
118 mm
Product Net Weight:
2.15 kg

Technical

Rated Operational Current AC-22A (Ie):
(380 ... 415 V) 16 A

(500 V) 16 A

(690 V) 16 A
Rated Operational Current AC-23A (Ie):
(380 ... 415 V) 16 A

(500 V) 16 A

(690 V) 10 A
Rated Operational Power AC-23A (Pe):
(380 ... 415 V) 7.5 kW

(500 V) 7.5 kW

(690 V) 7.5 kW
Conventional Thermal Current (Ithe):
Fully Enclosed 25 A
Rated Insulation Voltage (Ui):
acc. to  IEC/EN 60664-1 750 V
Rated Operational Voltage:
Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm):
(690 V) 0.71 kA
Rated Conditional Short-Circuit Current (Inc):
6.5 kA
Power Loss:
at Rated Operating Conditions per Pole 1.6 W
Pollution Degree:
3
Handle Color:
Black
Handle Type:
Round handle
Position of Line Terminals:
Top In - Bottom Out
Number of Poles:
6
Connecting Capacity Main Circuit:
Screw Clamp 0.75...10 mm²

Screw Clamp / PE Terminal 2pcs, 0.5…10 mm²
Cable Entry Position:
Up/down
Cable Outlets Per Side:
2xM25 / 2xM25+M16
Degree of Protection:
acc. to IEC 60529 IP65
Enclosure Type:
Frontex2
Enclosure Material:
Aluminium
Maximum Mounted Auxiliary Contacts:
2 NO, 2 NC
Mounted Auxiliary Contacts:
1 NO, 0 NC
Number of Auxiliary Contacts NC:
2
Number of Auxiliary Contacts NO:
2
Terminal Type:
Screw Terminals
Tightening Torque:
acc. IEC 60947-1 0.8 N·m
Mechanical Durability:
20000

Environmental

RoHS Status:
Following EU Directive 2011/65/EU

Certificates and Declarations (Document Number)

ATEX Certificate:\n1SCC340068D0201
Declaration of Conformity - CE:\n1SCC340067D2701
Instructions and Manuals:\n1SCC340166M0205
RoHS Information:\n2CMC300025D0001

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
170 mm
Package Level 1 Depth / Length:
240 mm
Package Level 1 Height:
150 mm
Package Level 1 Gross Weight:
2.15 kg
Package Level 1 EAN:
6417019839189

Classifications

Object Classification Code:
Q
ETIM 5:
EC000216 - Switch disconnector
ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland):
3640468
\n
'
