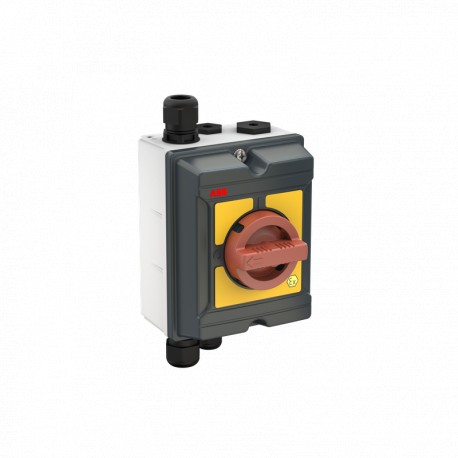

1SCA152717R1001 ABB Int. ATEX OTA16S3YX box disconnector
1SCA152717R1001
152717
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The ABB Int. ATEX OTA16S3YX box disconnector is a specialized enclosed switch designed to safely disconnect electrical loads in hazardous areas subject to explosive atmospheres. Enclosed disconnectors protect internal switching mechanisms from harsh environmental conditions while allowing operators to manually cut power locally.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Declaration: 1SCC340075D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340166M0205
- Mechanical Drawings: OTFK1161313RM25.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363010
- Last Ordering Date: 2026-08-31 All Countries
- Replacement Product ID (NEW): OTA16GS3YX
- Country or Territory of Origin: Bulgaria
- Product Net Width: 130 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340166M0205 |
| Mechanical Drawings | OTFK1161313RM25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363010 |
| Last Ordering Date | 2026-08-31 All Countries |
| Replacement Product ID (NEW) | OTA16GS3YX |
| Country or Territory of Origin | Bulgaria |
| Dimensions | |
| Product Net Width | 130 mm |
| Product Net Height | 165 mm |
| Product Net Depth / Length | 103 mm |
| Product Net Weight | 1.25 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 140 mm |
| Package Level 1 Depth / Length | 175 mm |
| Package Level 1 Height | 136 mm |
| Package Level 1 Gross Weight | 1.25 kg |
| Package Level 1 EAN | 6417019839158 |
| Technical | |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM25+M20 / 2xM25+M20 |
| Color | RAL7012 / RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 10 mm² |
| Screw Clamp / PE Terminal 3pc,1.5 ... 16 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Aluminium |
| Enclosure Type | Frontex1 |
| Handle Color | Red / Yellow |
| Handle Type | Round handle |
| Impact Resistance Rating | Housing IK07 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mechanical Durability | 20000 |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 1.6 W |
| Rated Conditional Short-Circuit Current (Inc) | 6.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 16 A |
| (500 V) 16 A | |
| (690 V) 16 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 16 A |
| (500 V) 16 A | |
| (690 V) 10 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 7.5 kW |
| (500 V) 7.5 kW | |
| (690 V) 7.5 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 0.71 kA |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 0.8 N·m |
| Wire Stripping Length | 10 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 10 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 0.8 N·m |
| Certificates and Declarations | |
| ATEX Certificate | 1SCC340068D0201 |
| Declaration of Conformity - CE | 1SCC340067D2701 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3640465 |
