View larger
Images are for illustrative purposes only. Please refer to data sheet for details

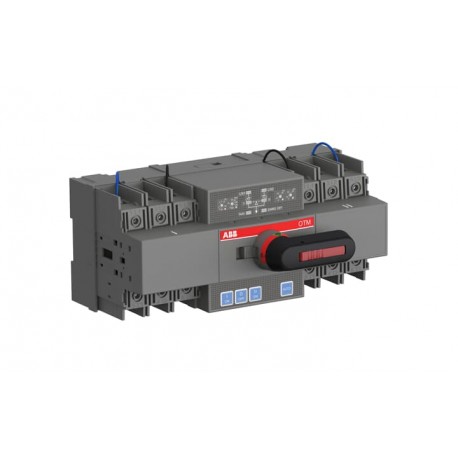

1SCA151422R1001 ABB Compact ATS 63A 2P OTM63F2C21D230C
1SCA151422R1001
151422
ABB
1 Pcs.
Compact ATS 63A 2P OTM63F2C21D230C
OTM63F2C21D230C AUTOMATIC TRANSFER SWITCH
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC308001B0201 |
| Instructions and Manuals | 1SCC303015M0201 |
| Mechanical Drawings | OTM63-125_2P_3P_COMPACTATS |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | China |
| Dimensions | |
| Product Net Width | 233 mm |
| 9.17 in | |
| Product Net Height | 103 mm |
| 4.06 in | |
| Product Net Depth / Length | 131 mm |
| 5.16 in | |
| Product Net Weight | 1.85 kg |
| 4.08 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 103 mm |
| Package Level 1 Depth / Length | 275 mm |
| Package Level 1 Height | 168 mm |
| Package Level 1 Gross Weight | 2.05 kg |
| Package Level 1 EAN | 6417019818276 |
| Technical | |
| Controller Type | 21D |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Degree of Protection | Front IP20 |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct mounted handle |
| Motor Operational Voltage | 220…240 V AC |
| Mounting Type | Base Mounting Or DIN-rail mounting |
| Number of Poles | 2P |
| Pollution Degree | 3 |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-32B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW |
| Rated Operational Voltage | Main Circuit 220…240 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2020980305001190 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5208 >> Controller switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3640451 |
| E-Number (Norway) | 4337510 |
