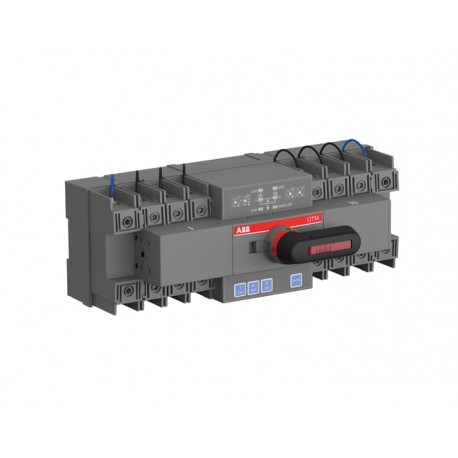

1SCA151255R1001 ABB Compact ATS 63A 4P OTM63F4C21D400C
1SCA151255R1001
151255
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An 1SCA151255R1001 ABB Compact ATS 63A 4P OTM63F4C21D400C is an automatic transfer switch utilized in electrical power systems to reliably switch loads between a primary power source and an emergency backup source. Such devices safeguard critical infrastructure by ensuring continuous power delivery during grid interruptions or failures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC308001B0201
- Instructions and Manuals: 1SCC303015M0201
- Mechanical Drawings: OTM40-125_4P_COMPACTATS
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: China
- Product Net Width: 286 mm
- Product Net Height: 103 mm
- Product Net Depth / Length: 131 mm
- Product Net Weight: 2.11 kg
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC308001B0201 |
| Instructions and Manuals | 1SCC303015M0201 |
| Mechanical Drawings | OTM40-125_4P_COMPACTATS |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | China |
| Dimensions | |
| Product Net Width | 286 mm |
| 11.26 in | |
| Product Net Height | 103 mm |
| 4.06 in | |
| Product Net Depth / Length | 131 mm |
| 5.16 in | |
| Product Net Weight | 2.11 kg |
| 4.65 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 103 mm |
| Package Level 1 Depth / Length | 328 mm |
| Package Level 1 Height | 168 mm |
| Package Level 1 Gross Weight | 2.35 kg |
| Package Level 1 EAN | 6417019815688 |
| Technical | |
| Controller Type | 21D |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Degree of Protection | Front IP20 |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Direct mounted handle |
| Motor Operational Voltage | 380…415 V AC |
| Mounting Type | Base Mounting Or DIN-rail mounting |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Position of Line Terminals | Supplies on Top - Load on Bottom |
| Power Loss | at Rated Operating Conditions per Pole 2.8 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 800 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-32B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 30 kW |
| Rated Operational Voltage | Main Circuit 380…415 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2020980305001190 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122214 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
