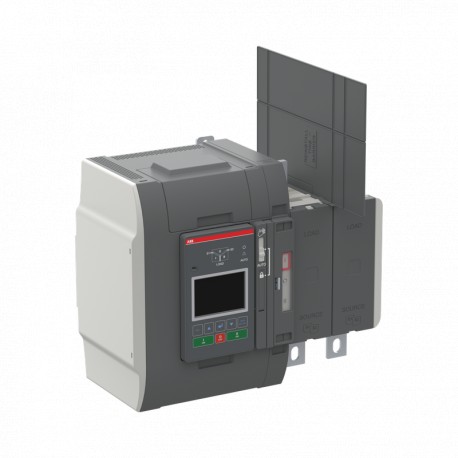

ABB 1SCA151052R1001 1SCA151052R1001 ABB Int. TruONE ATS Switch OXB630E1S3QB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA151052R1001 ABB Int. TruONE ATS Switch OXB630E1S3QB

1SCA151052R1001

151052

ABB

1 Pcs.

Int. TruONE ATS Switch OXB630E1S3QB Int. Switch TruONE ATS OXB630E1S3QB The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit.Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times.Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability.Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.Every TruONE features a wide voltage range, reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.Main characteristics of this particular TruONE type:Open style ATS, delayed transition type I-O-II operation, Level 3 controller (LCD)

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

b'

General Information

Extended Product Type:
OXB630E1S3QB
Product ID:
1SCA151052R1001
EAN:
6417019813097
Catalog Description:
OXB630E1S3QB AUTOMATIC TRANSFER SWITCH
Long Description:
The all-new TruONE is the world’s first true purpose-built automatic transfer switch, engineered to incorporate switch and controller in one seamless unit.Performance tested beyond standard requirements, TruONE stands ready to ensure the steady delivery of critical power at all times.Its self-contained design reduces the number of wires and connections, which speeds installation and minimizes the potential for connection failures to ensure best-in-class reliability.Its predictive maintenance and modular components reduce downtime and service costs. And its advanced connectivity is ready for the future.Every TruONE features a wide voltage range, reducing the need to stock multiple SKUs, reducing inventory and saving space in the warehouse.Main characteristics of this particular TruONE type:Open style ATS, delayed transition type I-O-II operation, Level 3 controller (LCD)
\n

Ordering

Minimum Order Quantity:
1 piece
Customs Tariff Number:
85365080
Country of Origin:
Finland (FI)

Dimensions

Product Net Width:
382 mm

15.04 in
Product Net Height:
313 mm

12.32 in
Product Net Depth / Length:
212 mm

8.35 in
Product Net Weight:
16.88 kg

37.21 lb

Technical

Rated Operational Current AC-31B (Ie):
(200 … 240 V AC) 630 A
Rated Operational Current AC-32B (Ie):
(200 … 240 V AC) 630 A
Rated Operational Current AC-33B (Ie):
(200 … 240 V AC) 630 A
Conventional Free-air Thermal Current (Ith):
q = 40 °C 630 A
Rated Impulse Withstand Voltage (Uimp):
12 kV
Rated Insulation Voltage (Ui):
1000 V
Rated Operational Voltage:
Main Circuit 200 ... 240 V AC
Rated Frequency (f):
Main Circuit 50-60 Hz
Rated Short-time Withstand Current (Icw):
for 0.3 s 18 kiloampere rms
Pollution Degree:
3
Handle Type:
Direct mounted handle
Position of Line Terminals:
Supplies on Bottom - Load on Top
Standards:
IEC60947-6-1
Controller Type:
Level 3 (LCD)
Special Functions:
Open style
Number of Poles:
2
Degree of Protection:
Front IP20
Terminal Type:
Bolt

Certificates and Declarations (Document Number)

Declaration of Conformity - CE:\n1SCC303062D2701
Instructions and Manuals:\n1SCC303011M0201

Container Information

Package Level 1 Units:
box 1 piece
Package Level 1 Width:
345 mm

13.58 in
Package Level 1 Depth / Length:
445 mm

17.52 in
Package Level 1 Height:
240 mm

9.45 in
Package Level 1 Gross Weight:
17.58 kg

38.76 lb
Package Level 1 EAN:
6417019813097

Classifications

ETIM 6:
EC000216 - Switch disconnector
ETIM 7:
EC000216 - Switch disconnector
WEEE Category:
5. Small Equipment (No External Dimension More Than 50 cm)
\n
'

ETIM for 1SCA151052R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 240 V
Rated short-time withstand current lcw (EF007050) 18 kA
Number of poles (EF001391) 2
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) Yes
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device plug-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
