> ABB > Manual Switches > 1SCA151044R1001

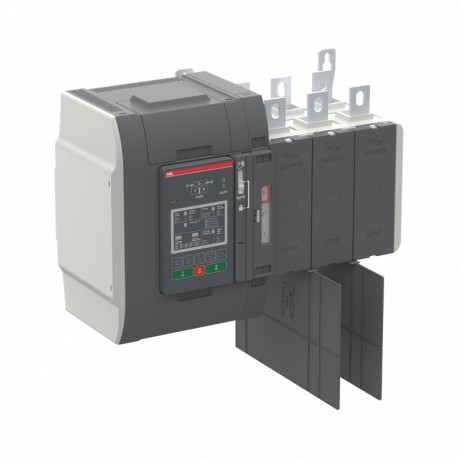

ABB 1SCA151044R1001 1SCA151044R1001 ABB Int. TruONE ATS OXB600U3X2QT Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA151044R1001 ABB Int. TruONE ATS OXB600U3X2QT Switch

1SCA151044R1001

1SCA151044R1001

ABB

1 Pcs.

Int. TruONE ATS OXB600U3X2QT Switch OXB600U3X2QT AUTOMATIC TRANSFER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC303064M0201
Environmental Product Declaration - EPD1SCC303131D0201
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 70.2 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011022D0201
RoHS Declaration1SCC011023D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC303119D0201
Popular Downloads
Data Sheet, Technical Information1SCC303008C0201
Instructions and Manuals1SCC303011M0201 REVISION FW 2.05
Mechanical DrawingsOX_500-800E_3X2_T_.stp
1SCC308261F0001
1SCC308260F0001
1SCC308259F0001
1SCC308258F0001
1SCC308329F0001
1SCC308328F0001
Wiring DiagramCircuit diagram_OXB_T_.dxf
Circuit diagram_OXB_T_.pdf
Environmental Product Declaration - EPD1SCC303131D0201
Environmental
Degree of ProtectionFront IP20
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Dimensions
Product Net Width447 mm
17.6 in
Product Net Height313 mm
12.32 in
Product Net Depth / Length212 mm
8.35 in
Product Net Weight19.15 kg
42.22 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width345 mm
13.58 in
Package Level 1 Depth / Length565 mm
22.24 in
Package Level 1 Height240 mm
9.45 in
Package Level 1 Gross Weight19.95 kg
43.98 lb
Package Level 1 EAN6417019813011
Technical
Controller TypeLevel 2 (DIP)
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 800 A
Degree of ProtectionFront IP20
Handle TypeDirect mounted handle
Number of Poles3P
Position of Line TerminalsSupplies on Top - Load on Bottom
Power Lossat Rated Operating Conditions per Pole 25 W
Rated Frequency (f)Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-31B (Ie)(200 … 415 V AC) 800 A
Rated Operational VoltageMain Circuit 200...480 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 42 kiloampere rms
Special FunctionsOpen style
StandardsUL1008 / IEC60947-6-1
Terminal TypeBolt
Transition TypeDelayed
Technical UL/CSA
Ampere Rating200-480V 600 A
Certificates and Declarations
Declaration of Conformity - CE1SCC303062D2701
EU Data Act Compliance Declaration9AKK108471A5903
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
