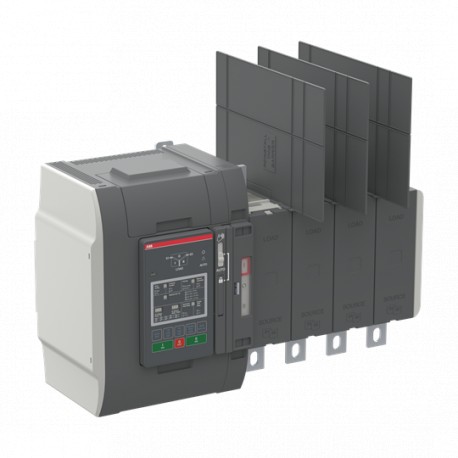

ABB 1SCA151025R1001 1SCA151025R1001 ABB Int. TruONE ATS Switch OXB500E3S2QB View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA151025R1001 ABB Int. TruONE ATS Switch OXB500E3S2QB

1SCA151025R1001

151025

ABB

1 Pcs.

Int. TruONE ATS Switch OXB500E3S2QB Int. Switch TruONE ATS OXB500E3S2QB OXB500E3S2QB AUTOMATIC TRANSFER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC303064M0201
Environmental Product Declaration - EPD1SCC303131D0201
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 70.2 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011022D0201
RoHS Declaration1SCC011023D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC303119D0201
Popular Downloads
Data Sheet, Technical Information1SCC303008C0201
Instructions and Manuals1SCC303011M0201_FW2.04
Mechanical DrawingsOX_500-800E_3S2_B_.stp
1SCC308263F0001
1SCC308262F0001
1SCC308179F0001
1SCC308178F0001
1SCC308329F0001
1SCC308328F0001
Wiring DiagramCircuit diagram_OXB_B_.dxf
Circuit diagram_OXB_B_.pdf
Environmental Product Declaration - EPD1SCC303131D0201
Environmental
Degree of ProtectionFront IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Dimensions
Product Net Width512 mm
20.16 in
Product Net Height313 mm
12.32 in
Product Net Depth / Length212 mm
8.35 in
Product Net Weight21.4 kg
47.18 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width345 mm
13.58 in
Package Level 1 Depth / Length565 mm
22.24 in
Package Level 1 Height240 mm
9.45 in
Package Level 1 Gross Weight22.2 kg
48.94 lb
Package Level 1 EAN6417019812823
Technical
Controller TypeLevel 2 (DIP)
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 500 A
Degree of ProtectionFront IP20
Fourth Pole PositionLeft and Right Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle TypeDirect mounted handle
Number of Poles4P
Pollution Degree3
Position of Line TerminalsSupplies on Bottom - Load on Top
Power Lossat Rated Operating Conditions per Pole 17.2 W
Rated Frequency (f)Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-31B (Ie)(200 … 415 V AC) 500 A
Rated Operational Current AC-32B (Ie)(200 … 415 V AC) 500 A
Rated Operational Current AC-33B (Ie)(200 … 415 V AC) 500 A
Rated Operational VoltageMain Circuit 200...480 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 42 kiloampere rms
Special FunctionsOpen style
StandardsIEC60947-6-1
Terminal TypeBolt
Transition TypeDelayed
Certificates and Declarations
Declaration of Conformity - CE1SCC303062D2701
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

ETIM for 1SCA151025R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 480 V
Rated short-time withstand current lcw (EF007050) 42 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) Yes
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device plug-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1
