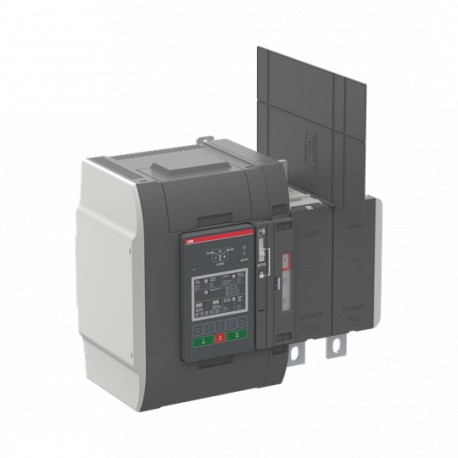

1SCA151023R1001 ABB Int. TruONE ATS Switch OXB500E1S2QB
1SCA151023R1001
151023
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb automatic transfer switching equipment facilitates seamless power source transitions between primary and backup electrical supplies to prevent critical downtime in facilities. Such units are widely deployed in commercial and industrial power distribution architectures to maintain continuous operation during grid instability or power failures.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC303064M0201
- Environmental Product Declaration - EPD: 1SCC303131D0201
- Extended Product Lifetime: Product Modularity
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 70.2 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011022D0201
- RoHS Declaration: 1SCC011023D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC303119D0201
- Data Sheet, Technical Information: 1SCC303008C0201
- Instructions and Manuals: 1SCC303011M0201_FW2.04
- Mechanical Drawings: OX_500-800E_1S2_B_.stp
- Wiring Diagram: Circuit diagram_OXB_B_.dxf
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC303064M0201 |
| Environmental Product Declaration - EPD | 1SCC303131D0201 |
| Extended Product Lifetime | Product Modularity |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 70.2 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011022D0201 |
| RoHS Declaration | 1SCC011023D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC303119D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303008C0201 |
| Instructions and Manuals | 1SCC303011M0201_FW2.04 |
| Mechanical Drawings | OX_500-800E_1S2_B_.stp |
| 1SCC308251F0001 | |
| 1SCC308250F0001 | |
| 1SCC308175F0001 | |
| 1SCC308174F0001 | |
| 1SCC308329F0001 | |
| 1SCC308328F0001 | |
| Wiring Diagram | Circuit diagram_OXB_B_.dxf |
| Circuit diagram_OXB_B_.pdf | |
| Environmental Product Declaration - EPD | 1SCC303131D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Dimensions | |
| Product Net Width | 382 mm |
| 15.04 in | |
| Product Net Height | 313 mm |
| 12.32 in | |
| Product Net Depth / Length | 212 mm |
| 8.35 in | |
| Product Net Weight | 16.88 kg |
| 37.21 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 345 mm |
| 13.58 in | |
| Package Level 1 Depth / Length | 445 mm |
| 17.52 in | |
| Package Level 1 Height | 240 mm |
| 9.45 in | |
| Package Level 1 Gross Weight | 17.58 kg |
| 38.76 lb | |
| Package Level 1 EAN | 6417019812809 |
| Technical | |
| Controller Type | Level 2 (DIP) |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 500 A |
| Degree of Protection | Front IP20 |
| Handle Type | Direct mounted handle |
| Number of Poles | 2P |
| Pollution Degree | 3 |
| Position of Line Terminals | Supplies on Bottom - Load on Top |
| Power Loss | at Rated Operating Conditions per Pole 17.2 W |
| Rated Frequency (f) | Main Circuit 50-60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-31B (Ie) | (200 … 240 V AC) 500 A |
| Rated Operational Current AC-32B (Ie) | (200 … 240 V AC) 500 A |
| Rated Operational Current AC-33B (Ie) | (200 … 240 V AC) 500 A |
| Rated Operational Voltage | Main Circuit 200...240 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 0.3 s 18 kiloampere rms |
| Special Functions | Open style |
| Standards | IEC60947-6-1 |
| Terminal Type | Bolt |
| Transition Type | Delayed |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303062D2701 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
