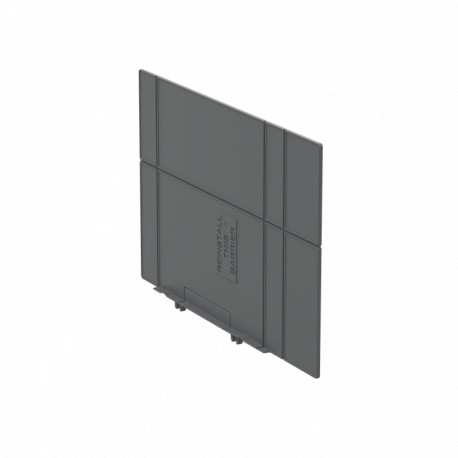

ABB 1SCA150202R1001 1SCA150202R1001 ABB Phase separator OXEB1600/6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA150202R1001 ABB Phase separator OXEB1600/6

1SCA150202R1001

150202

ABB

1 Pcs.

Phase separator OXEB1600/6 OXEB1600/6 PHASE BARRIER

Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Supplied by Abb, the 1SCA150202R1001 ABB Phase separator OXEB1600/6 operates as a dielectric barrier designed to increase clearance between adjacent electrical switch poles. Phase separators are routinely installed in heavy-duty switchgear configurations to prevent electrical flashover and arc bridging across high-current terminals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC303008C0201
  • Instructions and Manuals: 1SCC303011M0201_FW2.02
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Estonia
  • Product Net Width: 14 mm
  • Product Net Height: 182 mm
  • Product Net Depth / Length: 267 mm
  • Product Net Weight: 0.713 kg
  • Package Level 1 Units: bag 1 piece
  • Package Level 1 Width: 280 mm
  • Package Level 1 Depth / Length: 200 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303008C0201
Instructions and Manuals1SCC303011M0201_FW2.02
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginEstonia
Dimensions
Product Net Width14 mm
0.55 in
Product Net Height182 mm
7.17 in
Product Net Depth / Length267 mm
10.51 in
Product Net Weight0.713 kg
1.57 lb
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width280 mm
11.02 in
Package Level 1 Depth / Length200 mm
7.87 in
Package Level 1 Height50 mm
1.97 in
Package Level 1 Gross Weight0.713 kg
1.57 lb
Package Level 1 EAN6417019801599
Certificates and Declarations
External Classifications and Standards
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
eClassV11.1 : 27371392
WEEE CategoryProduct Not in WEEE Scope
