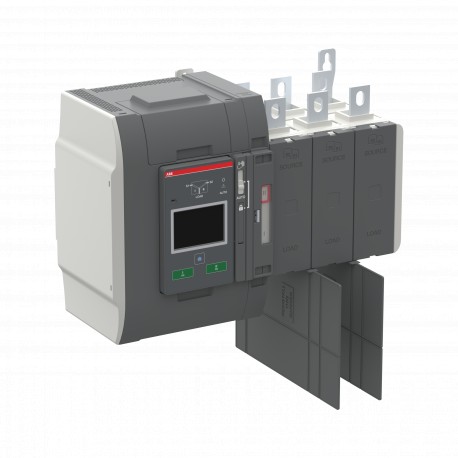

1SCA149950R1001 ABB Int. TruONE ATS Switch OXA400U3X4QT

1SCA149950R1001

1SCA149950R1001

ABB

1 Pcs.

Int. TruONE ATS Switch OXA400U3X4QT OXA400U3X4QT AUTOMATIC TRANSFER SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC303064M0201
Environmental Product Declaration - EPD1SCC303130D0201
Extended Product LifetimeProduct Modularity
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 68.6 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011022D0201
RoHS Declaration1SCC011023D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC303119D0201
Popular Downloads
Data Sheet, Technical Information1SCC303008C0201
Instructions and Manuals1SCC303011M0201 REVISION FW 2.05
Mechanical DrawingsOX_400U3X4_T_.stp
1SCC308319F0001
1SCC308318F0001
1SCC308317F0001
1SCC308316F0001
1SCC308333F0001
1SCC308332F0001
Wiring DiagramCircuit diagram_OXA_T_.dxf
Circuit diagram_OXA_T_.pdf
Environmental Product Declaration - EPD1SCC303130D0201
Environmental
Degree of ProtectionFront IP20
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Dimensions
Product Net Width447 mm
17.6 in
Product Net Height313 mm
12.32 in
Product Net Depth / Length183 mm
7.2 in
Product Net Weight19.08 kg
42.06 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width345 mm
13.58 in
Package Level 1 Depth / Length565 mm
22.24 in
Package Level 1 Height240 mm
9.45 in
Package Level 1 Gross Weight19.88 kg
43.83 lb
Package Level 1 EAN6417019799766
Technical
Controller TypeLevel 4 (Touch)
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 400 A
Degree of ProtectionFront IP20
Handle TypeDirect mounted handle
Number of Poles3P
Position of Line TerminalsSupplies on Top - Load on Bottom
Power Lossat Rated Operating Conditions per Pole 20.3 W
Rated Frequency (f)Main Circuit 50-60 Hz
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-31B (Ie)(200 … 415 V AC) 400 A
Rated Operational Current AC-32B (Ie)(200 … 415 V AC) 400 A
Rated Operational Current AC-33B (Ie)(200 … 415 V AC) 400 A
Rated Operational VoltageMain Circuit 200...480 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 0.1 s 30 kiloampere rms
Special FunctionsOpen style
StandardsUL1008 / IEC60947-6-1
Terminal TypeBolt
Transition TypeOpen
Technical UL/CSA
Ampere Rating200-480V 400 A
Rated Short-time Current UL/CSAfor 0.1 s 30 kiloampere rms
Certificates and Declarations
Declaration of Conformity - CE1SCC303062D2701
EU Data Act Compliance Declaration9AKK108471A5903
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA149950R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 480 V
Rated short-time withstand current lcw (EF007050) 30 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) Yes
Voltage release optional (EF007491) No
Device construction (EF008240) Built-in device plug-in technique
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) 1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
