View larger
Images are for illustrative purposes only. Please refer to data sheet for details

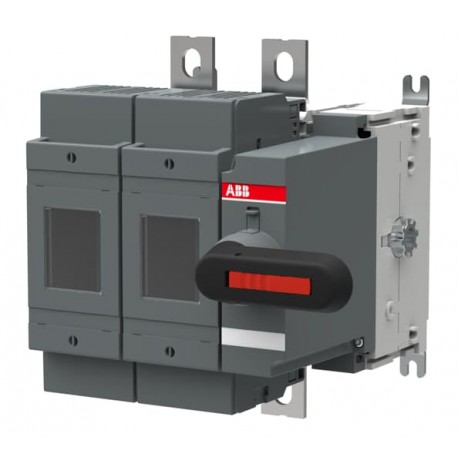

1SCA144497R1001 ABB OS250D20K fuse switch
1SCA144497R1001
144497
ABB
1 Pcs.
OS250D20K fuse switch
OS250D20K SWITCH FUSE
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 310 mm |
| Product Net Height | 270 mm |
| Product Net Depth / Length | 200 mm |
| Product Net Weight | 2.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| Package Level 1 Depth / Length | 310 mm |
| Package Level 1 Height | 200 mm |
| Package Level 1 Gross Weight | 2.79 kg |
| Package Level 1 EAN | 6417019728223 |
| Technical | |
| Fuse Size | NH0 |
| NH1 | |
| Fuse System | DIN |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Power Loss | at Rated Current 17 W |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Standards | IEC 60947-3 |
| Terminal Type | Lug terminals |
| Tightening Torque | 30 … 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 … 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311095D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371392 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
