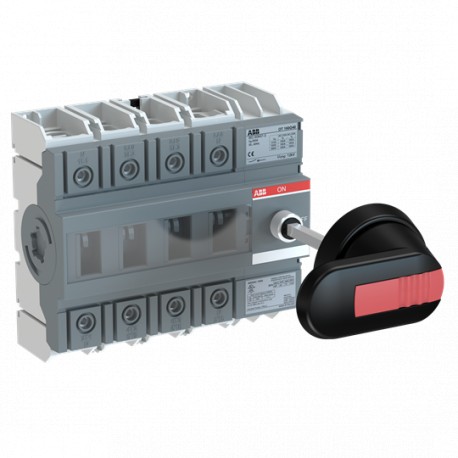

ABB 1SCA138216R1001 1SCA138216R1001 ABB Disconnector switch OT160G40P View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA138216R1001 ABB Disconnector switch OT160G40P

1SCA138216R1001

138216

ABB

1 Pcs.

Disconnector switch OT160G40P OT160G40P SWITCH-DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301116M0201
Environmental Information1SCC301267D0201
Environmental Product Declaration - EPD1SCC301281D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPc890c227-81b2-40ec-80d2-362218f43732 Finland
Simplified SCIPfac4d358-5529-426f-859c-6c08984b3f3d Germany
7682f2a0-92fc-40ed-8ca6-bbfa4d8f7d9f Belgium
916ab46f-d52a-4808-95ed-fcf59f04c982 Denmark
46c6cbcb-0a2c-4ce4-ac98-e9f672910a54 Germany
6d5332ce-f572-4888-b1c8-d36e864ac927 Norway
6b2fe77b-ef6e-44c4-a0b5-88c8bee28e41 Hungary
c8d86131-9494-4d55-a6a6-d8940132bcca Spain
7fe25e41-d115-43b7-a6f5-e35283fc65cc Belgium
93bb7635-f77f-4741-97da-a11e8a2a683d Italy
6b7b1827-bde9-4ac4-9507-a9c2cfc450d4 Poland
8bfb29aa-665b-431a-af9f-17a136aca14d Germany
c263be22-e22a-45f8-b2b0-f6ee33819e6f Sweden
57fcec66-75c6-4204-83bc-8c7ac206f0df France
d0ef0e52-119d-4bfc-b01e-40265366d810 Poland
f788227d-1931-4d6a-b2aa-93eac26de669 Greece
3b1ee79e-79a4-4e77-be20-a1f68e57060d Sweden
a9bae258-34c0-49c3-85b2-62feddd04512 Bulgaria
80a3795e-11f8-49b5-b448-93a032935838 Estonia
9e0ddcab-4649-43df-bb84-0be14ce7f346 Hungary
afeda17e-5da0-4cb8-abe7-fc2936a2746c Netherlands
11463468-e977-433f-9fcf-4ad467948ce3 Portugal
d65ef1d1-8dbb-4a22-b39d-3b44ad835246 Czech Republic
e9b1d7ad-e632-42a0-8a4c-52d50bde12ce Croatia
9041e03c-6fdd-41fb-a9e5-18eccc2af76d Poland
6a3cf3fe-7a62-4938-9a21-2ebe6a04deee Germany
77d3663c-d138-4897-8d2f-e393af7e9eb8 Germany
9ba4ed4e-e139-4973-a732-d7574836d2b8 France
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301089M0204
Mechanical DrawingsOT160G4_model.igs
Environmental Product Declaration - EPD1SCC301281D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC301267D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width150 mm
Product Net Height130 mm
Product Net Depth / Length73 mm
Product Net Weight1.2 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width160 mm
Package Level 1 Depth / Length244 mm
Package Level 1 Height96 mm
Package Level 1 Gross Weight1.3 kg
Package Level 1 EAN6417019666266
Technical
Cable Cross-SectionCu 10 ... 70 mm²
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)Fully Enclosed 160 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront and Side
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)(200 A fuse, 500 V) 100 kA
(200 A fuse, 690 V) 50 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 160 A
(500 V) 160 A
(690 V) 160 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 45 kW
(400 ... 415 V) 75 kW
(500 V) 90 kW
(690 V) 132 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 12 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 4 kA
Special FunctionsNo
StandardsIEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating MechanismMechanism at the End of the Switch
40 (Right Side)
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 6 N·m
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating125 A
Horsepower Rating UL/CSA(240 V AC) Single Phase 20 Hp
(440 ... 480 V AC) Single Phase 30 Hp
Tightening Torqueacc. IEC 60947-1 6 N·m
Tightening Torque UL/CSA53 in·lb
Certificates and Declarations
A2L Certificate – IEC1SCC301336D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301210D2701
DNV GL Certificate1SCC301174D0204
UL CertificatecULus certificate OT160G
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA138216R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current Iu (EF001389) 160 A
Rated permanent current at AC-23, 400 V (EF011777) 160 A
Rated permanent current at AC-21, 400 V (EF009165) 160 A
Rated short-time withstand current lcw (EF007050) 4 kA
Rated operation power at AC-23, 400 V (EF007027) 75 kW
Switching power at 400 V (EF009166) 75 kW
Conditioned rated short-circuit current Iq (EF001444) 50 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Screw connection
Degree of protection (IP), front side (EF003118) IP20
Degree of protection (NEMA) (EF011959) Other
