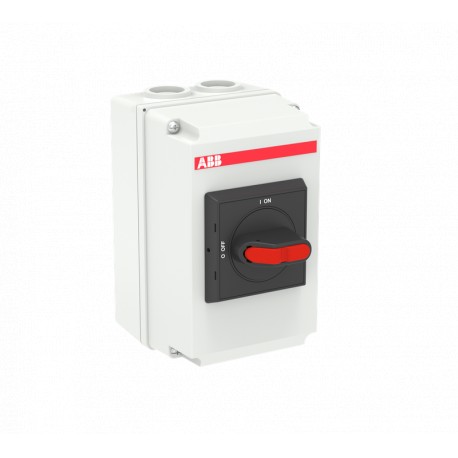

1SCA131732R1001 ABB Int. Box DC Disconnector OTDCP32S22MD
1SCA131732R1001
1SCA131732R1001
ABB
1 Pcs.
Int. Box DC Disconnector OTDCP32S22MD
OTDCP32S22MD Enclosed solar switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340027M0002 |
| Mechanical Drawings | OTDCK159595SM20.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 108 mm |
| Product Net Height | 167 mm |
| Product Net Depth / Length | 142 mm |
| Product Net Weight | 0.63 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 108 mm |
| Package Level 1 Gross Weight | 0.63 kg |
| Package Level 1 EAN | 6417019609928 |
| Technical | |
| Cable Entry Position | Up/Down |
| Cable Outlets Per Side | 2xM20 / 2xM20 |
| Connecting Capacity Main Circuit | Screw Clamp 2.5…16 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Enclosure Type | OTD |
| Handle Color | Black |
| Handle Type | Selector handle |
| Mechanical Durability | 4000 cycle |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 0.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current DC-21B (Ie) | (1000 V) 32 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.71 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Torx |
| Special Functions | Solar |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Wire Stripping Length | Main Circuit 30 … 11 mm |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 30 … 11 mm |
| Recommended Screw Driver | Main Circuit Torx |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Norway) | 1414520 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 32 A |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Colour control element (EF007167) | Black |
| Interlockable (EF006281) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
