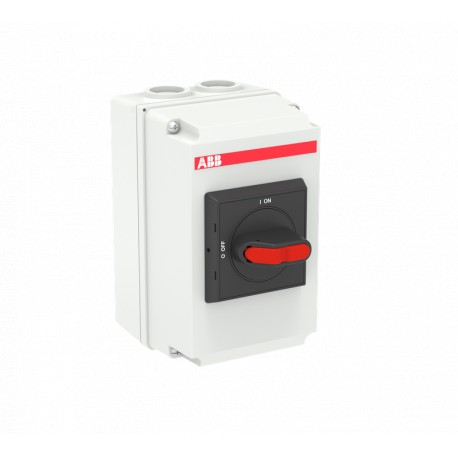

ABB 1SCA131731R1001 1SCA131731R1001 ABB Int. Box DC Disconnector OTDCP25S22MD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA131731R1001 ABB Int. Box DC Disconnector OTDCP25S22MD

1SCA131731R1001

1SCA131731R1001

ABB

1 Pcs.

Int. Box DC Disconnector OTDCP25S22MD OTDCP25S22MD Enclosed solar switch

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An enclosed ABB DC disconnector is installed in solar photovoltaic systems to safely interrupt direct current circuits during maintenance or emergency events. Housed in a protective enclosure, this switchgear prevents electrical hazards in harsh outdoor or industrial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC301240D0201
  • RoHS Declaration: 1SCC301239D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC301321D0201
  • Data Sheet, Technical Information: 1SCC340015C0201
  • Instructions and Manuals: 1SCC340027M0002
  • Mechanical Drawings: OTDCK159595SM20.stp
  • Degree of Protection: acc. to IEC 60529 IP65
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country or Territory of Origin: Finland
  • Product Net Width: 108 mm
  • Product Net Height: 167 mm
  • Product Net Depth / Length: 142 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340027M0002
Mechanical DrawingsOTDCK159595SM20.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width108 mm
Product Net Height167 mm
Product Net Depth / Length142 mm
Product Net Weight0.63 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width142 mm
Package Level 1 Depth / Length167 mm
Package Level 1 Height108 mm
Package Level 1 Gross Weight0.63 kg
Package Level 1 EAN6417019609911
Technical
Cable Entry PositionUp/Down
Cable Outlets Per Side2xM20 / 2xM20
Connecting Capacity Main CircuitScrew Clamp 2.5…16 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 25 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Enclosure TypeOTD
Handle ColorBlack
Handle TypeSelector handle
Mechanical Durability4000 cycle
Mounted Auxiliary Contacts0 NO, 0 NC
Mounting TypeBase mounting
Number of Poles4P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 0.3 W
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current DC-21B (Ie)(1000 V) 25 A
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 0.71 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 0.5 kA
Recommended Screw DriverMain Circuit Torx
Special FunctionsSolar
StandardsIEC 60947-1, -3
Terminal TypeScrew Terminals
Tightening TorqueMain Circuit 1.2 … 1.4 N·m
Wire Stripping LengthMain Circuit 21 … 11 mm
Technical UL/CSA
Wire Stripping LengthMain Circuit 21 … 11 mm
Recommended Screw DriverMain Circuit Torx
Tightening TorqueMain Circuit 1.2 … 1.4 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340003D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)1414519
