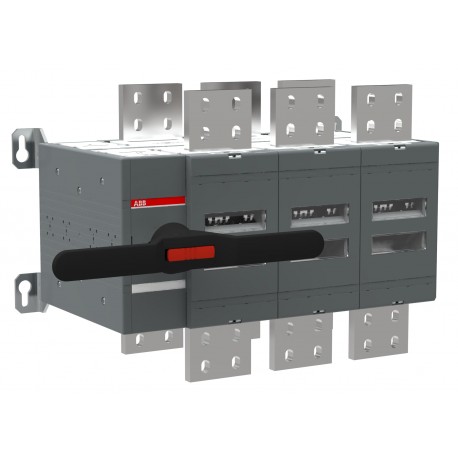

1SCA129156R1001 ABB OT3200E03P switch switch
1SCA129156R1001
129156
ABB
1 Pcs.
OT3200E03P switch switch
OT3200E03CP CHANGE-OVER SWITCH
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb OT3200E03P switch disconnector is built for extreme amperage applications, providing secure, high-capacity electrical isolation in heavy industrial power distribution systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303055M0201
- Environmental Product Declaration - EPD: 1SCC303102D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Environmental Product Declaration - EPD (duplicate): 1SCC303102D0201
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 590 mm
- Product Net Height: 410 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303055M0201 |
| Environmental Product Declaration - EPD | 1SCC303102D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303102D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 590 mm |
| 23.23 in | |
| Product Net Height | 410 mm |
| 16.14 in | |
| Product Net Depth / Length | 325 mm |
| 12.8 in | |
| Product Net Weight | 71.18 kg |
| 156.92 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 430 mm |
| 16.93 in | |
| Package Level 1 Depth / Length | 690 mm |
| 27.17 in | |
| Package Level 1 Height | 450 mm |
| 17.72 in | |
| Package Level 1 Gross Weight | 84.08 kg |
| 185.36 lb | |
| Package Level 1 EAN | 6417019588537 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 3200 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 95 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21B (Ie) | (380 ... 415 V) 3200 A |
| (500 V) 3200 A | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 55 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 50 ... 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303055D2701 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
