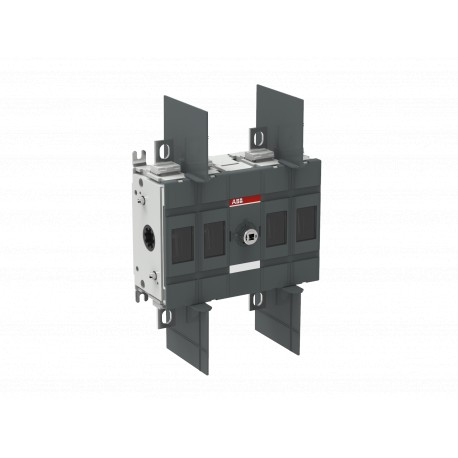

1SCA125869R1001 ABB DC OTDC250E22 disconnector switch
1SCA125869R1001
125869
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SCA125869R1001 is a specialized DC disconnector switch engineered to isolate photovoltaic and direct current industrial circuits safely. Technicians incorporate these devices into renewable energy systems and DC drives to protect equipment during maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC301114M0201
- Environmental Information: NA
- Environmental Product Declaration - EPD: 1SCC301248D0201
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 66,5 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC301321D0201
- Data Sheet, Technical Information: 1SCC301022C0201
- Instructions and Manuals: 1SCC301081M0206
- Mechanical Drawings: OTDC100_200E22.igs
- Wiring Diagram: 1SCC301033K0201
- Environmental Product Declaration - EPD: 1SCC301248D0201
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301114M0201 |
| Environmental Information | NA |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66,5 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301081M0206 |
| Mechanical Drawings | OTDC100_200E22.igs |
| 1SCC307583F0201 | |
| 1SCC307584F0201 | |
| Wiring Diagram | 1SCC301033K0201 |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | NA |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Frame Size | S1.0 |
| Product Net Width | 185.4 mm |
| 7.3 in | |
| Product Net Height | 262 mm |
| 10.3 in | |
| Product Net Depth / Length | 90.5 mm |
| 3.6 in | |
| Product Net Weight | 2.2 kg |
| 4.9 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 220 mm |
| 8.7 in | |
| Package Level 1 Depth / Length | 260 mm |
| 10.2 in | |
| Package Level 1 Height | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight | 2.6 kg |
| 5.7 lb | |
| Package Level 1 EAN | 6417019558691 |
| Technical | |
| Connection Configuration | Double circuit 4a, 4c |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting |
| Number of Circuits | 2 |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 5 … 8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 9.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-21B (Ie) | (1000 V) 250 A |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 10 kA |
| for 1 s 5 kA | |
| for 0.1 s 10 kA | |
| Shaft Diameter | 6 mm |
| 0.24 in | |
| Special Functions | No |
| Standards | IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 19.5 mm |
| 0.77 in | |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Certificates and Declarations | |
| CCC Certificate | CQC2013010302611671 |
| Declaration of Conformity - CE | 1SCC301201D2703 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642469 |
