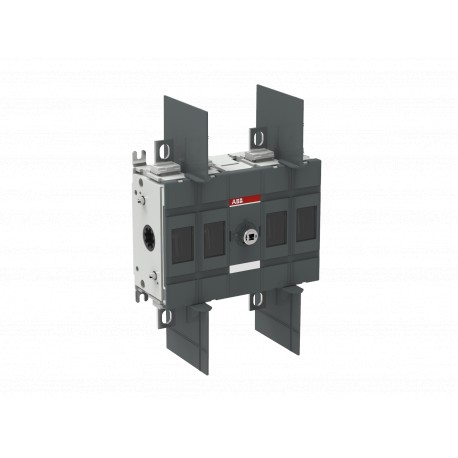

ABB 1SCA125824R1001 1SCA125824R1001 ABB DC disconnector switch OTDC100E22 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA125824R1001 ABB DC disconnector switch OTDC100E22

1SCA125824R1001

125824

ABB

1 Pcs.

DC disconnector switch OTDC100E22 Switch disconnector DC OTDC100E22 OTDC100E22 DC Switch-disconnector

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC301114M0201
Environmental InformationNA
Environmental Product Declaration - EPD1SCC301248D0201
Improved Energy Efficiency for CustomersProduct Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 66,5 %
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC301240D0201
RoHS Declaration1SCC301239D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC301321D0201
Popular Downloads
Data Sheet, Technical Information1SCC301022C0201
Instructions and Manuals1SCC301081M0206
Mechanical DrawingsOTDC100_200E22.igs
1SCC307583F0201
1SCC307584F0201
Wiring Diagram1SCC301033K0201
Environmental Product Declaration - EPD1SCC301248D0201
Environmental
Degree of ProtectionFront IP20
Environmental InformationNA
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Country or Territory of OriginFinland
Dimensions
Product Frame SizeS1.0
Product Net Width185.4 mm
7.3 in
Product Net Height262 mm
10.3 in
Product Net Depth / Length90.5 mm
3.6 in
Product Net Weight2.2 kg
4.9 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width220 mm
8.7 in
Package Level 1 Depth / Length260 mm
10.2 in
Package Level 1 Height155 mm
6.1 in
Package Level 1 Gross Weight2.6 kg
5.7 lb
Package Level 1 EAN6417019558202
Technical
Connection ConfigurationDouble circuit 4a, 4c
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 100 A
Conventional Thermal Current (Ithe)Fully Enclosed 100 A
Degree of ProtectionFront IP20
Handle TypeHandle and shaft not included
Mounting TypeBase mounting
Number of Circuits2
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Positive Opening Operation Torque (Direct Opening Action)5 … 8 N·m
Power Lossat Rated Operating Conditions per Pole 2 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1500 V
Rated Operational Current DC-21B (Ie)(1000 V) 100 A
Rated Operational Voltage1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V DC) 10 kA
Rated Short-time Withstand Current Low Voltage (Icw)(1000 V DC) 10 kA
for 1 s 5 kA
for 0.1 s 10 kA
Shaft Diameter6 mm
0.24 in
Special FunctionsNo
StandardsIEC 60947-1, -3
Switches Operating MechanismMechanism Between the Poles
22 (Between the Poles)
Terminal TypeLug terminals
Terminal Width19.5 mm
0.77 in
UtilizationPhotovoltaic
Utilization CategorySwitching of resistive loads, including moderate overloads - occasional actuation (DC-21B)
Certificates and Declarations
CCC CertificateCQC2013010302611671
Declaration of Conformity - CE1SCC301201D2703
Declaration of Conformity - UKCA1SCC301313D0201
DNV GL Certificate1SCC301231D0201
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC004963 - Switch disconnector (DC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
