View larger
Images are for illustrative purposes only. Please refer to data sheet for details

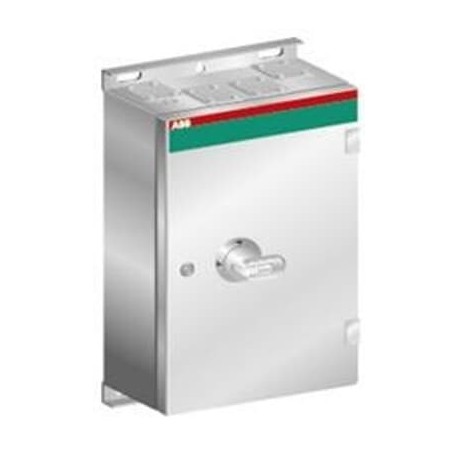

1SCA125726R1001 ABB Info160EVSUR3TZ safe deposit box
1SCA125726R1001
125726
ABB
1 Pcs.
Info160EVSUR3TZ safe deposit box
OT160EVSUR3TZ Safety switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 4ff6b74f-58b9-4f98-9def-eb910f43a8f6 Finland |
| Simplified SCIP | 8f334809-1ac3-45b6-a073-87e63b5e44c7 Germany |
| 25fb92a3-1ef2-462d-b8e2-52d0f6d6ab6e Italy | |
| 041c675b-f8fb-4d18-a632-f7518dd18574 Norway | |
| b6d8a63c-84e9-4a9e-83d9-ec4c8d303e0e Germany | |
| ed7e013b-6d0b-4fef-a4d6-e5763f6cc499 France | |
| 2394f082-7f66-4308-83bf-c7ec3a52e0a1 Sweden | |
| dd402f5b-7a1f-4b06-9a75-4976b715c5f8 Poland | |
| a3531ca4-00da-4240-800d-9bcc3d971639 Greece | |
| ff2a2d0a-6e37-4faf-a56d-ea53ce2f5c08 Estonia | |
| 86caf04f-40ba-410a-93f5-f34db989790c Portugal | |
| 72162800-0aa4-4bf8-9f6e-2f52978783a8 Netherlands | |
| e6e13028-577a-4293-9a3c-bea7054a4ebd Germany | |
| 479c7b87-6180-4be2-9fbe-7353c00c0e02 Belgium | |
| cf0d7e3d-be52-4d54-b7d6-5515db9bd5f5 Denmark | |
| 48f16909-69ce-423c-8ff9-9f57239b6ff6 Croatia | |
| 3e0bde23-5f57-4f3d-ac5f-2accbf8bb667 France | |
| a0f16662-7226-4816-8eca-cf6533f67962 Germany | |
| 7acc97a5-5c09-4e26-80f1-e7a2b7ca0e7b Spain | |
| 9c0c3264-b222-4c19-9d00-358fd4b83d3d Poland | |
| 01bb4788-a6e2-4639-9524-1e98e0c3ff54 Hungary | |
| b73e886a-76df-4bb9-a498-8dd0396c6736 Czech Republic | |
| 2b28307b-1bb8-4476-a64d-cd8f958a16fc Poland | |
| 398afdc1-7c5f-41cf-bd45-6339e24980d6 Germany | |
| 1c79e482-feb8-4987-8e4b-468dafcd2e84 Hungary | |
| 1101cfbd-d729-44d6-ad98-7fe373194f04 Sweden | |
| abf3a118-d222-432b-a630-538ff1195e4b Bulgaria | |
| 1187b710-2dea-4791-8f49-fe64f05ffbe3 Belgium | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK604023PBL4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 27.01 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 28.7 kg |
| Package Level 1 EAN | 6417019557496 |
| Technical | |
| Cable Entry Position | Bottom/Bottom |
| Cable Outlets Per Side | Blank / 4xring-flange+ø25.5mm |
| Color | Stainless |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 3.2 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 80 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340002D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Sweden) | 3135018 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 750 V |
| Rated operating voltage (EF001435) | 750 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 80 kW |
| Switching power at 400 V (EF009166) | 80 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
