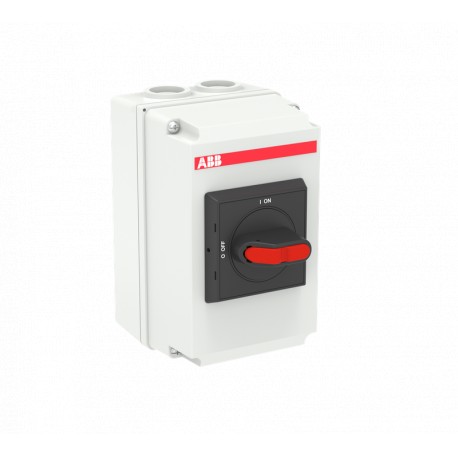

ABB 1SCA125153R1001 1SCA125153R1001 ABB Int. Box DC Disconnector OTDCP16S12M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA125153R1001 ABB Int. Box DC Disconnector OTDCP16S12M

1SCA125153R1001

125153

ABB

1 Pcs.

Int. Box DC Disconnector OTDCP16S12M OTDCP16S12M Enclosed solar switch

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Extended Product Type:
    OTDCP16S12M
  • Product ID:
    1SCA125153R1001
  • EAN:
    6417019554105
  • Catalog Description:
    OTDCP16S12M Enclosed solar switch
  • Long Description:
    The enclosure in the OTDCP series is using a rigid glass reinforced polycarbonate enclosure. The enclosure is UV protected, protected against low-pressure water jets (IP65), and hence built for outdoor and indoor use. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. The handle is padlockable and made for three padlocks. The cover is interlocked, and the interlock can be defeated with a special tool. Typical applications is solar panels, DC batteries, etc.

Circular Value

  • Conflict Minerals Reporting Template (CMRT):
    9AKK108467A5658
  • REACH Declaration:
    1SCC301240D0201
  • RoHS Information:
    1SCC301239D0201
  • SCIP:
    6dbcc6a7-7c43-4803-aac9-1b9d56d716da Finland (FI)
  • Simplified SCIP:
    106d97ef-40f5-48f9-b759-4456553a19b4 Bulgaria (BG)
    11e8bc01-ab3d-414d-8923-1dbba1afba7e Sweden (SE)
    a2440890-1a1d-4207-8678-7363217d0716 Germany (DE)
    ecf414ab-07de-4f7a-82f7-2840eefe6834 Sweden (SE)
    f562b232-6006-4766-bb6a-e6b68fe97942 France (FR)
    4f17cd94-fe32-490e-a112-b79f5c9d915e Greece (GR)
    589ccdbd-9aec-4c1c-bbea-064f6f783c5c Poland (PL)
    537681ce-30db-4e80-9cac-fcfa7d66baf9 Belgium (BE)
    a5db6a35-6e9b-4877-864c-2e101e6ab476 Italy (IT)
    f9f82fe3-0290-4a46-95a7-e38d53238e74 Germany (DE)
    cbd12426-ef4c-4520-82a7-8e6975538711 France (FR)
    629e421e-5fe6-4da4-9729-793beef606d8 Spain (ES)
    c51abc95-da01-4018-b9d2-7bdb516ae602 Estonia (EE)
    03afcbbb-4895-4a20-8d82-382adbce7985 Portugal (PT)
    035daf1f-5f35-415b-8124-5a6254c4dccf Poland (PL)
    d76fab0f-ea17-4ca5-a373-badbefe2e31b Norway (NO)
    a44ecae6-5ef4-4fe1-b141-9dab6f4fbc82 Belgium (BE)
    cbb00cd0-27b5-450e-bf15-2c62aafb4768 Hungary (HU)
    53549092-4cf4-4af1-bd5d-c4f0735e620b Hungary (HU)
    867226ac-2158-4725-a552-2af37cb3eef5 Poland (PL)
    190bf5b6-38a6-49c8-8a7d-55b2bbeea12e Germany (DE)
    90984db9-4148-4464-9e83-a34c15368c2d Denmark (DK)
    205f99bf-3bdb-4586-bbe9-de4b81b2eb40 Germany (DE)
    918de6a4-dc1d-4a24-b933-3e56480d75ee Czech Republic (CZ)
    0019e5ce-7e40-4447-b06c-2b1d9419e739 Croatia (HR)
    743efcfd-e1fe-4d5b-9f4f-8999e3de28bf Netherlands (NL)

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080
  • Country of Origin:
    Finland (FI)

Popular Downloads

Dimensions

  • Product Net Width:
    95mm
  • Product Net Height:
    150mm
  • Product Net Depth / Length:
    95mm
  • Product Net Weight:
    0.59kg

Technical

  • Rated Operational Current DC-21B (Ie):
    (1000 V) 16 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 16 A
  • Rated Impulse Withstand Voltage (Uimp):
    8 kV
  • Rated Insulation Voltage (Ui):
    acc. to IEC/EN 60664-1 1000 V
  • Rated Operational Voltage:
    Main Circuit 1000 V
  • Rated Short-Circuit Making Capacity (Icm):
    (690 V AC) 0.71 kA
  • Rated Short-time Withstand Current Low Voltage (Icw):
    for 1 s 0.5 kA
  • Power Loss:
    at Rated Operating Conditions per Pole 0.15 W
  • Pollution Degree:
    3
  • Handle Color:
    Black
  • Handle Type:
    Selector handle
  • Standards:
    IEC 60947-1, -3
  • Special Functions:
    Solar
  • Number of Poles:
    3
  • Connecting Capacity Main Circuit:
    Screw Clamp 2.5…16 mm²
  • Cable Entry Position:
    Up/Down
  • Cable Outlets Per Side:
    2xM20 / 2xM20
  • Degree of Protection:
    acc. to IEC 60529 IP65
  • Enclosure Material:
    Plastic
  • Mounted Auxiliary Contacts:
    0 NO, 0 NC

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • SCIP:
    6dbcc6a7-7c43-4803-aac9-1b9d56d716da Finland (FI)
  • Simplified SCIP:
    106d97ef-40f5-48f9-b759-4456553a19b4 Bulgaria (BG)
    11e8bc01-ab3d-414d-8923-1dbba1afba7e Sweden (SE)
    a2440890-1a1d-4207-8678-7363217d0716 Germany (DE)
    ecf414ab-07de-4f7a-82f7-2840eefe6834 Sweden (SE)
    f562b232-6006-4766-bb6a-e6b68fe97942 France (FR)
    4f17cd94-fe32-490e-a112-b79f5c9d915e Greece (GR)
    589ccdbd-9aec-4c1c-bbea-064f6f783c5c Poland (PL)
    537681ce-30db-4e80-9cac-fcfa7d66baf9 Belgium (BE)
    a5db6a35-6e9b-4877-864c-2e101e6ab476 Italy (IT)
    f9f82fe3-0290-4a46-95a7-e38d53238e74 Germany (DE)
    cbd12426-ef4c-4520-82a7-8e6975538711 France (FR)
    629e421e-5fe6-4da4-9729-793beef606d8 Spain (ES)
    c51abc95-da01-4018-b9d2-7bdb516ae602 Estonia (EE)
    03afcbbb-4895-4a20-8d82-382adbce7985 Portugal (PT)
    035daf1f-5f35-415b-8124-5a6254c4dccf Poland (PL)
    d76fab0f-ea17-4ca5-a373-badbefe2e31b Norway (NO)
    a44ecae6-5ef4-4fe1-b141-9dab6f4fbc82 Belgium (BE)
    cbb00cd0-27b5-450e-bf15-2c62aafb4768 Hungary (HU)
    53549092-4cf4-4af1-bd5d-c4f0735e620b Hungary (HU)
    867226ac-2158-4725-a552-2af37cb3eef5 Poland (PL)
    190bf5b6-38a6-49c8-8a7d-55b2bbeea12e Germany (DE)
    90984db9-4148-4464-9e83-a34c15368c2d Denmark (DK)
    205f99bf-3bdb-4586-bbe9-de4b81b2eb40 Germany (DE)
    918de6a4-dc1d-4a24-b933-3e56480d75ee Czech Republic (CZ)
    0019e5ce-7e40-4447-b06c-2b1d9419e739 Croatia (HR)
    743efcfd-e1fe-4d5b-9f4f-8999e3de28bf Netherlands (NL)

Certificates and Declarations

Container Information

  • Package Level 1 Units:
    box 1 piece
  • Package Level 1 Width:
    142 mm
  • Package Level 1 Depth / Length:
    167 mm
  • Package Level 1 Height:
    108 mm
  • Package Level 1 Gross Weight:
    0.7 kg
  • Package Level 1 EAN:
    6417019554105

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
  • ETIM 7:
    EC000216 - Switch disconnector
  • ETIM 8:
    EC000216 - Switch disconnector
  • ETIM 9:
    EC000216 - Switch disconnector (low voltage)
  • eClass:
    V11.1 : 27371403
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • E-Number (Finland):
    3601733
  • E-Number (Norway):
    1414585
  • E-Number (Sweden):
    3134008

ETIM for 1SCA125153R1001 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current Iu (EF001389) 16 A
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) Yes
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) No
Colour control element (EF007167) Black
Interlockable (EF006281) No
Degree of protection (IP), front side (EF003118) IP65
