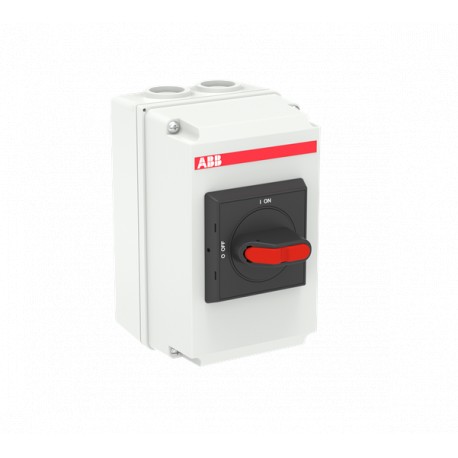

1SCA125129R1001 ABB Disconnector switch box OTDCP16S11M
1SCA125129R1001
125129
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SCA125129R1001 Disconnector switch box OTDCP16S11M is utilized in industrial environments to safely interrupt electrical circuits and protect technicians during service tasks. Enclosed load disconnectors provide localized safety isolation directly adjacent to automated machinery and equipment.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC301321D0201
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340027M0002
- Mechanical Drawings: OTDCK159595SM20.stp
- Degree of Protection: acc. to IEC 60529 IP65
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 95 mm
- Product Net Height: 150 mm
- Product Net Depth / Length: 95 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340027M0002 |
| Mechanical Drawings | OTDCK159595SM20.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 95 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 95 mm |
| Product Net Weight | 0.55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 142 mm |
| Package Level 1 Depth / Length | 167 mm |
| Package Level 1 Height | 108 mm |
| Package Level 1 Gross Weight | 0.6 kg |
| Package Level 1 EAN | 6417019553856 |
| Technical | |
| Cable Entry Position | Up/Down |
| Cable Outlets Per Side | 2xM20 / 2xM20 |
| Connecting Capacity Main Circuit | Screw Clamp 2.5…16 mm² |
| Conventional Thermal Current (Ithe) | Fully Enclosed 16 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Selector handle |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 0.15 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current DC-21B (Ie) | (600 V) 16 A |
| (1000 V) 10 A | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.71 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA |
| Recommended Screw Driver | Main Circuit Torx |
| Special Functions | Solar |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Wire Stripping Length | Main Circuit 10 … 11 mm |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 10 … 11 mm |
| Recommended Screw Driver | Main Circuit Torx |
| Tightening Torque | Main Circuit 1.2 … 1.4 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC340018D0204 |
| Declaration of Conformity - CE | 1SCC340003D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601727 |
| E-Number (Norway) | 1414579 |
| E-Number (Sweden) | 3134003 |
