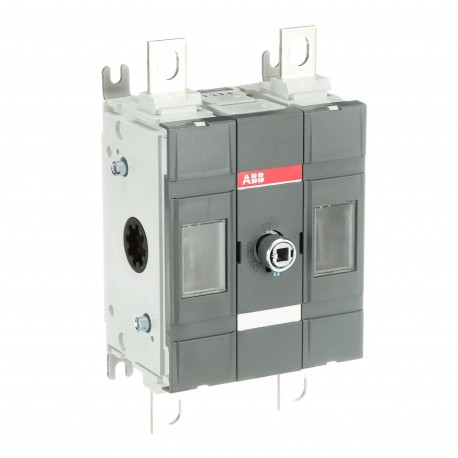

1SCA123957R1001 ABB DC OTDC100U11 disconnect switch
1SCA123957R1001
123957
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
DC disconnect switch 1SCA123957R1001 by Abb is engineered for direct current electrical systems to safely interrupt high-voltage DC circuits during maintenance or overload conditions. These specialised switches prevent arcing hazards and ensure dependable isolation in renewable energy and industrial DC distribution networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC301114M0201
- Environmental Information: NA
- Environmental Product Declaration - EPD: 1SCC301248D0201
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 66,5 %
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC301240D0201
- RoHS Declaration: 1SCC301239D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC301321D0201
- Data Sheet, Technical Information: 1SCC301022C0201
- Instructions and Manuals: 1SCC301081M0206
- Mechanical Drawings: OTDC100_245U11.igs
- Environmental Product Declaration - EPD: 1SCC301248D0201
- Degree of Protection: Front IP20
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC301114M0201 |
| Environmental Information | NA |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Improved Energy Efficiency for Customers | Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 66,5 % |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC301240D0201 |
| RoHS Declaration | 1SCC301239D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC301321D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301022C0201 |
| Instructions and Manuals | 1SCC301081M0206 |
| Mechanical Drawings | OTDC100_245U11.igs |
| 1SCC307007F0002 | |
| 1SCC307008F0002 | |
| Environmental Product Declaration - EPD | 1SCC301248D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | NA |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Frame Size | S1.0 |
| Product Net Width | 115.5 mm |
| 4.5 in | |
| Product Net Height | 176 mm |
| 6.9 in | |
| Product Net Depth / Length | 83.5 mm |
| 3.3 in | |
| Product Net Weight | 1.2 kg |
| 2.7 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 96 mm |
| 3.8 in | |
| Package Level 1 Depth / Length | 160 mm |
| 6.3 in | |
| Package Level 1 Height | 244 mm |
| 9.6 in | |
| Package Level 1 Gross Weight | 1.4 kg |
| 3 lb | |
| Package Level 1 EAN | 6417019546391 |
| Technical | |
| Connection Configuration | Single circuit 2a, 2b |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 |
| Handle Type | Handle and shaft not included |
| Mounting Type | Base mounting |
| Number of Circuits | 1 |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Positive Opening Operation Torque (Direct Opening Action) | 5 … 8 N·m |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Protection Type | Circuit breaker |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1500 V |
| Rated Operational Current DC-21B (Ie) | (1000 V) 160 A |
| Rated Operational Voltage | 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V DC) 10 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | (1000 V DC) 10 kA |
| for 1 s 5 kA | |
| for 0.1 s 10 kA | |
| Shaft Diameter | 6 mm |
| 0.24 in | |
| Special Functions | No |
| Standards | UL98B and IEC 60947-1, -3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 11 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 19.5 mm |
| 0.77 in | |
| Tightening Torque | Cable Lug 15 … 22 N·m |
| Cable Lug 133 … 195 lbf·in | |
| Utilization | Photovoltaic |
| Utilization Category | Switching of resistive loads, including moderate overloads - occasional actuation (DC-21B) |
| Technical UL/CSA | |
| Maximum Operating Voltage | 1000Vdc, UL 98B |
| Ampere Rating | 100A,1000Vdc,UL98B |
| Short-Circuit Current Rating (SCCR) | 10 kA |
| 1000 V DC | |
| Tightening Torque | Cable Lug 15 … 22 N·m |
| Cable Lug 133 … 195 lbf·in | |
| Certificates and Declarations | |
| CCC Certificate | CQC2013010302611671 |
| CSA Certificate | CSA Letter_of_Attestation OTDC100-200.pdf |
| Declaration of Conformity - CE | 1SCC301201D2703 |
| Declaration of Conformity - UKCA | 1SCC301313D0201 |
| DNV GL Certificate | 1SCC301231D0201 |
| UL Certificate | UL certificate OTDC100-200.pdf |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC004963 - Switch disconnector (DC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
