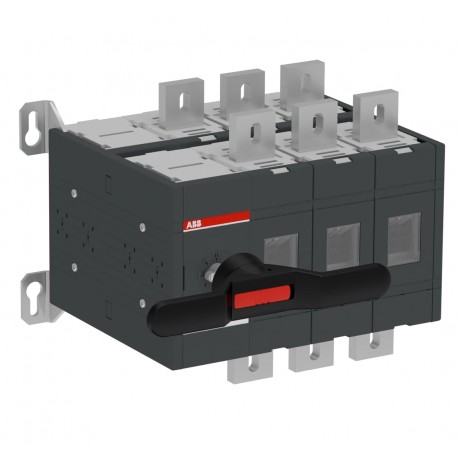

1SCA117173R1001 ABB Switch switch OT1250E12DD
1SCA117173R1001
117173
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SCA117173R1001 ABB switch unit is a heavy-duty industrial switching device designed to safely interrupt electrical power distribution circuits under load. Such robust disconnectors are typically installed in large switchboards and control panels to manage main power isolation and maintenance safety. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301120M0201
- Environmental Information: 1SCC301233D0201
- Environmental Product Declaration - EPD: 1SCC301300D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301075F0204
- Degree of Protection: Front IP00
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 400 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301120M0201 |
| Environmental Information | 1SCC301233D0201 |
| Environmental Product Declaration - EPD | 1SCC301300D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301075F0204 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 372 mm |
| Product Net Depth / Length | 309 mm |
| Product Net Weight | 34.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 480 mm |
| Package Level 1 Depth / Length | 580 mm |
| Package Level 1 Height | 420 mm |
| Package Level 1 Gross Weight | 36.3 kg |
| Package Level 1 EAN | 6417019491912 |
| Technical | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 1250 A |
| Handle Color | Black |
| Mechanical Durability | 6000 |
| Number of Poles | 6P |
| Power Loss | at Rated Operating Conditions per Pole 29 W |
| Rated Conditional Short-Circuit Current (Inc) | (1250 A fuse, 415 V) 80 kA |
| (1250 A fuse, 500 V) 100 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (690 V) 1250 A |
| (690 V) 380415V;1250 A | |
| (690 V) 500V;1250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Power AC-23A (Pe) | (400 ... 415 V) 710 kW |
| (500 V) 900 kW | |
| (690 V) 1200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 110 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kA |
| Standards | IEC 60947-3 |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 50 … 75 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301338D0201 |
| Declaration of Conformity - CE | 1SCC301155D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
