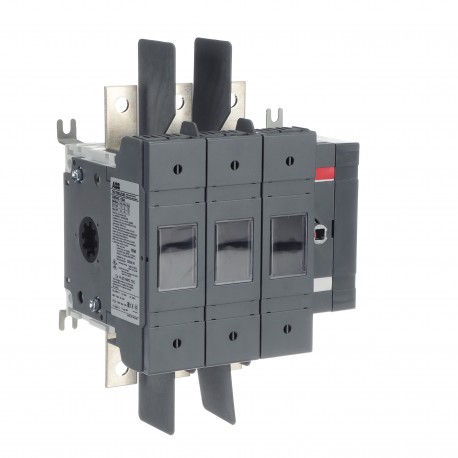

1SCA115971R1001 ABB Side fuse switch OS100GJS30
1SCA115971R1001
1SCA115971R1001
ABB
1 Pcs.
Side fuse switch OS100GJS30
OS100GJS30 FUSIBLE DISCONNECT SWITCH
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311039M0205 |
| Mechanical Drawings | OS100GJS30.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 182 mm |
| Product Net Height | 172 mm |
| Product Net Depth / Length | 117 mm |
| Product Net Weight | 2.05 kg |
| 4.52 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 260 mm |
| 10.2 in | |
| Package Level 1 Depth / Length | 290 mm |
| 11.4 in | |
| Package Level 1 Height | 190 mm |
| 7.5 in | |
| Package Level 1 Gross Weight | 2.3 kg |
| 5.1 lb | |
| Package Level 1 EAN | 6417019482415 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 100 A |
| Fuse System | Class J |
| Handle Type | Handle not included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Side |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 30 (Right Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Ampere Rating | 100 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 30 Hp |
| (acc. to UL 480 V) 60 Hp | |
| (acc. to UL 600 V) 75 Hp | |
| Tightening Torque | 15 ... 22 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 120 in·lb |
| Cable Lug 50 in·lb | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | cULus certificate OS100GJ_ |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
