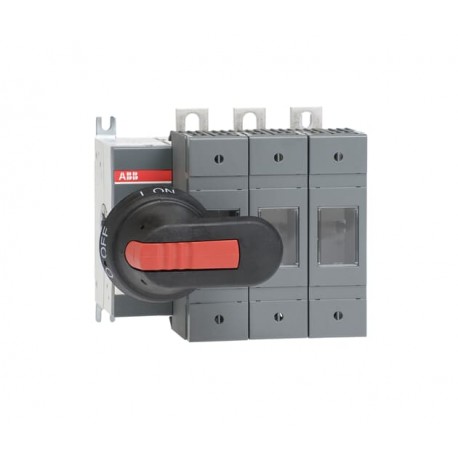

1SCA115602R1001 ABB OS125GF03P Fuse Switch
1SCA115602R1001
115602
ABB
1 Pcs.
OS125GF03P Fuse Switch
OS125GF03P SWITCH FUSE
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB fuse switch provides reliable load break functionality alongside robust fuse protection within commercial switchboards. This equipment helps protect critical machinery and personnel by isolating faulty electrical paths safely.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311047M0201
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: d0ed0b06-9569-4695-9347-79362d465eda Finland
- Simplified SCIP: 57f58c2c-7880-4cff-8365-d13ff054bbb1 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311037M0206
- Mechanical Drawings: OS160GD_F_03.igs
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d0ed0b06-9569-4695-9347-79362d465eda Finland |
| Simplified SCIP | 57f58c2c-7880-4cff-8365-d13ff054bbb1 Germany |
| f6d1a8ab-87ba-44dd-be0a-804cb39e9885 Norway | |
| b05f1288-b9d3-4680-b5fe-723dc3a8f4b2 Poland | |
| 10bd25fd-b62e-443d-856f-2241b5b6ddcf Germany | |
| 06d35fa9-c8a6-4bcb-af49-61ce624c5771 Spain | |
| e265b412-3885-4b92-9b4c-baa681f785eb Belgium | |
| 35c2735d-ee1a-443e-b5e6-d6e5e15eae58 France | |
| b09350e1-e79a-41ee-b0a3-a4e1db0a4e40 Hungary | |
| 7167ee3b-c000-4141-9121-1b92e27b72bc Sweden | |
| 021a94d4-f68a-499a-870f-375e992a6fdd Germany | |
| 2ba7c51e-5a7e-4975-bbfe-a6ecea4f31ed Germany | |
| 91f1a52d-ccc6-4bf8-bff8-233810168237 Poland | |
| e350cdf3-1673-4e30-ad47-7c5db391d69c Netherlands | |
| 58c482ba-e59d-4a64-995c-6cfb6ae76004 Greece | |
| eed0e36e-f4f1-4a7c-821d-fe0c5bffbebc Portugal | |
| 7bc054f5-818a-4475-a9a0-68cb17a1761f Bulgaria | |
| f9061423-8067-4544-94d5-c4469471aeb5 Estonia | |
| 521fdfae-90ec-44f2-b7a9-ef61e143f0d2 Hungary | |
| 8bcaf273-e133-4b3e-b94e-8666a3e01ec6 Sweden | |
| a325dfb6-f15a-4750-a60a-c3a21cfb7b53 Poland | |
| 3057d5dd-76ed-4b91-b898-bcb163723d9a Croatia | |
| 5598518a-9e7f-427b-a028-043eddc2a863 France | |
| 9933ccd6-e566-4041-a299-5a2629c1b4fe Czech Republic | |
| 6fa0d1af-7417-41a9-a3dc-556025ca9bbc Italy | |
| d7cb0205-552c-4e4f-9a73-cbd468b4a008 Belgium | |
| f7337df9-60e2-43f4-99b8-7d5d74313dfb Denmark | |
| d0b4d26a-9af2-4263-9b8a-ebe211968374 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS160GD_F_03.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 147 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.03 kg |
| 4.48 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 220 mm |
| 8.7 in | |
| Package Level 1 Height | 150 mm |
| 5.9 in | |
| Package Level 1 Gross Weight | 2.2 kg |
| 4.8 lb | |
| Package Level 1 EAN | 6417019479514 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Fuse Size | 22x58 |
| Fuse System | NFC |
| Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 125 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 125 A |
| (690 V) 125 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 37 kW |
| (400 V) 55 kW | |
| (415 V) 55 kW | |
| (500 V) 75 kW | |
| (690 V) 110 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
