1SCA114770R1001 ABB Fourth Pole OSP160GN
1SCA114770R1001
1SCA114770R1001
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

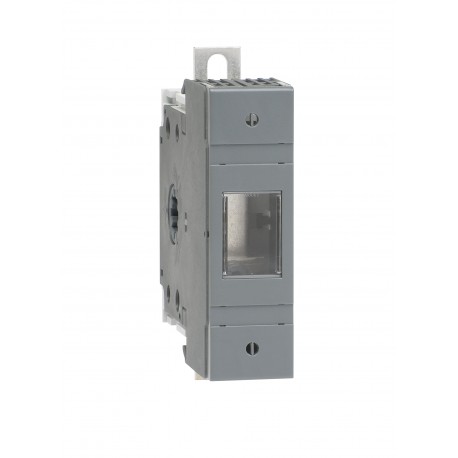

The Abb 1SCA114770R1001 fourth pole OSP160GN is designed for integration into modular load break switches, providing synchronized switching capability for neutral conductors in multi-phase power distribution networks. Fourth pole modules attach directly to standard switch bodies to ensure balanced breaking across all system lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311037M0206
- Mechanical Drawings: OSP160G_B_N.stp
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Finland
- Product Net Width: 75 mm
- Product Net Height: 146 mm
- Product Net Depth / Length: 160 mm
- Product Net Weight: 0.5 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 75 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OSP160G_B_N.stp |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 75 mm |
| Product Net Height | 146 mm |
| Product Net Depth / Length | 160 mm |
| Product Net Weight | 0.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 75 mm |
| Package Level 1 Depth / Length | 160 mm |
| Package Level 1 Height | 146 mm |
| Package Level 1 Gross Weight | 0.5 kg |
| Package Level 1 EAN | 6417019471969 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 160 A |
| Conventional Thermal Current (Ithe) | 160 A |
| Mounting Type | Screw mounting |
| Power Loss | at Rated Current 9 W |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Special Functions | GN |
| Terminal Type | Lug terminals |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371392 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3600139 |
| E-Number (Sweden) | 3171033 |
