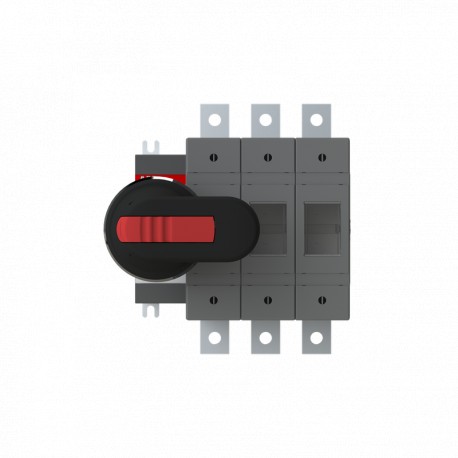

1SCA114613R1001 ABB Fuse Switch OS100GB03P
1SCA114613R1001
114613
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This ABB OS100GB03P fuse switch combines a compact load break switch with reliable fuse protection to secure electrical distribution networks against overloads. These switching units are widely integrated into control panels to provide manual isolation capabilities and dependable short-circuit interruption. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 1SCC311047M0201
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: cfcaba33-4cd5-4e73-8501-8549fe774750 Finland
- Simplified SCIP: 651676db-599d-436c-bd33-7df3975e8796 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311037M0206
- Mechanical Drawings: OS100-200GB03_iges.igs
- Environmental Product Declaration - EPD: 1SCC311196D0201
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311047M0201 |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | cfcaba33-4cd5-4e73-8501-8549fe774750 Finland |
| Simplified SCIP | 651676db-599d-436c-bd33-7df3975e8796 Germany |
| 40669426-4c5e-401c-8333-c97103ad8c4e Germany | |
| 4f77ca75-071c-41fb-ac1e-660026920402 Germany | |
| 5aaed291-d372-4ed1-acbc-7f2f5d977a73 Netherlands | |
| 5c4caf31-feca-4af8-9299-17addf6723df Hungary | |
| de3fb61a-162b-49a4-8674-ea79fafb9ac9 France | |
| 761f5c81-00fc-405d-af33-724706f9a1bf Belgium | |
| 215af842-5363-4347-938e-9369ecfaa203 Sweden | |
| aa640aa0-94b7-4e33-a456-c7cf237f8f91 Germany | |
| b5e0c519-b912-4c9a-8346-1838d50fe2c7 Sweden | |
| 4d8e4710-42c0-4ab3-ac3d-ee53381c0627 Poland | |
| a107238a-9036-4d01-87f5-f0e6f7c9a31a Estonia | |
| badbee06-88d5-485d-8192-e1bf228d6820 Germany | |
| bbe5681f-866d-47b1-9ace-aec5d787d960 Greece | |
| fe1e3bb2-6f9f-441e-ae36-e6fa281ce93a Portugal | |
| e59f1ff2-10d1-40d9-8974-2f9251aaf302 Norway | |
| 58450bc0-2df6-48c7-8517-bae5fa74e2ca Belgium | |
| b218443e-f4ea-41a2-9da2-c4d2fc4273cd Croatia | |
| f61955c7-dac1-41ec-a1f8-014fb834fdfc Poland | |
| 66f78e69-f011-41a2-8410-c4eb8e6a553a Poland | |
| d3efb746-9c24-457e-ba2c-6bc24fa5618f Bulgaria | |
| 730a946f-1cbe-4795-9b3f-6917a446455f Spain | |
| b468a616-6794-4ba3-b7cf-4b1380a63786 France | |
| 4dc0f1f4-af91-48a8-a9fb-5b0995061384 Hungary | |
| 8eef4898-d425-45ba-995f-a82b4d791bac Czech Republic | |
| a8448d5c-7122-4fcb-af6f-99637d476837 Denmark | |
| 7cd7d867-9b25-4f43-b8a4-9e43e8631c70 Italy | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311037M0206 |
| Mechanical Drawings | OS100-200GB03_iges.igs |
| Environmental Product Declaration - EPD | 1SCC311196D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 147 mm |
| Product Net Height | 140 mm |
| Product Net Depth / Length | 115 mm |
| Product Net Weight | 2.06 kg |
| 4.54 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 220 mm |
| 8.7 in | |
| Package Level 1 Height | 150 mm |
| 5.9 in | |
| Package Level 1 Gross Weight | 2.2 kg |
| 4.9 lb | |
| Package Level 1 EAN | 6417019470337 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 100 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 100 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | A2-A4 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 100 A |
| (690 V) 100 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 30 kW |
| (400 V) 55 kW | |
| (415 V) 55 kW | |
| (500 V) 55 kW | |
| (690 V) 90 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS100-160G_ 2015.pdf |
| Declaration of Conformity - CE | 1SCC311137D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
