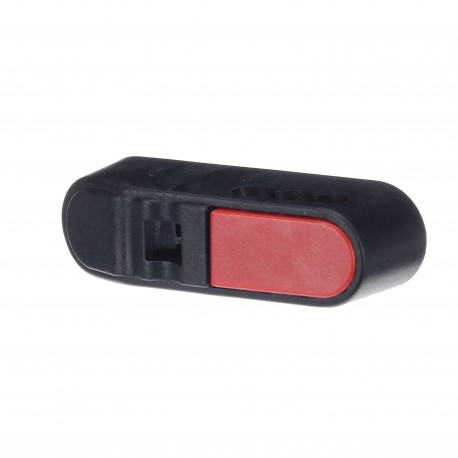

ABB 1SCA109092R1001 1SCA109092R1001 ABB OHBS11 CONTROLLER View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA109092R1001 ABB OHBS11 CONTROLLER

1SCA109092R1001

109092

ABB

1 Pcs.

OHBS11 CONTROLLER OHBS11 HANDLE

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as an Abb 1SCA109092R1001 ABB OHBS11 CONTROLLER, this component is utilized in industrial control panels for interfacing with modular switchgear systems. Controller hardware ensures reliable signal transmission and mechanical linkage for complex automation and power management setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390064M0004
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Finland
  • Product Net Width: 58 mm
  • Product Net Height: 16.5 mm
  • Product Net Depth / Length: 18 mm
  • Product Net Weight: 0.01 kg
  • Package Level 1 Units: bag 1 piece
  • Package Level 1 Width: 58 mm
  • Package Level 1 Depth / Length: 20 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390064M0004
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginFinland
Dimensions
Product Net Width58 mm
Product Net Height16.5 mm
Product Net Depth / Length18 mm
Product Net Weight0.01 kg
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width58 mm
Package Level 1 Depth / Length20 mm
Package Level 1 Height20 mm
Package Level 1 Gross Weight0.018 kg
Package Level 1 EAN6417019424699
Technical
ColorBlack
Handle ColorBlack
Handle Length57 mm
Handle TypeKnob
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC31162801
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3661952

Product Datasheet
