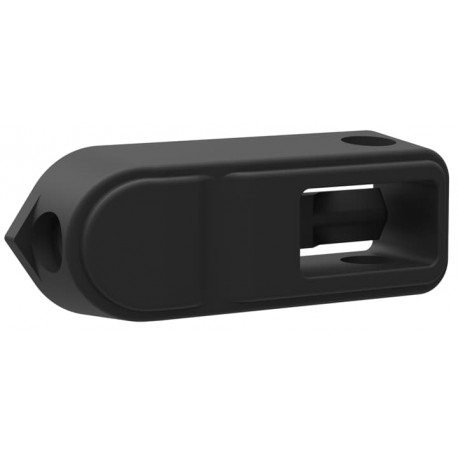

ABB 1SCA109089R1001 1SCA109089R1001 ABB OHBS2 CONTROL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA109089R1001 ABB OHBS2 CONTROL

1SCA109089R1001

109089

ABB

1 Pcs.

OHBS2 CONTROL OHBS2 HANDLE

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Abb 1SCA109089R1001 OHBS2 control component serves as an operational accessory for switchgear configurations, supporting reliable panel integration. Such parts ensure proper mechanical linkage and tactile feedback in commercial and industrial power distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390064M0004
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Finland
  • Product Net Width: 40 mm
  • Product Net Height: 15 mm
  • Product Net Depth / Length: 15 mm
  • Product Net Weight: 0.065 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 15 mm
  • Package Level 1 Depth / Length: 40 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390064M0004
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Country or Territory of OriginFinland
Dimensions
Product Net Width40 mm
Product Net Height15 mm
Product Net Depth / Length15 mm
Product Net Weight0.065 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width15 mm
Package Level 1 Depth / Length40 mm
Package Level 1 Height15 mm
Package Level 1 Gross Weight0.069 kg
Package Level 1 EAN6417019423050
Technical
ColorBlack
Handle ColorBlack
Handle Length40 mm
Handle TypeKnob
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC31162801
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3661955
E-Number (Norway)4363500
