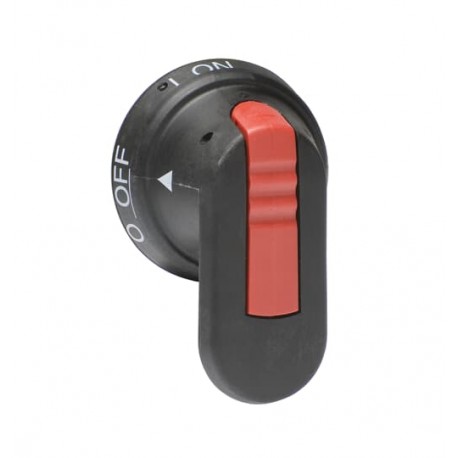

ABB 1SCA109016R1001 1SCA109016R1001 ABB Controller OHB65J6TE00S View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA109016R1001 ABB Controller OHB65J6TE00S

1SCA109016R1001

109016

ABB

1 Pcs.

Controller OHB65J6TE00S OHB65J6TE00S Handle

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enabling reliable external switching functionality, the Abb 1SCA109016R1001 controller acts as a secure operator handle for industrial switchgear installations requiring protected enclosure access.

These operator interfaces are integrated into machine automation panels to provide safe, weatherproof control over heavy electrical loads during daily factory operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: No documentation needed
  • Instructions and Manuals: 1SCC390009M0018
  • Degree of Protection: IP65
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Estonia
  • Product Net Width: 98 mm
  • Product Net Height: 45 mm
  • Product Net Depth / Length: 66 mm
  • Product Net Weight: 0.135 kg
  • Package Level 1 Units: bag 1 piece
  • Package Level 1 Width: 70 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical InformationNo documentation needed
Instructions and Manuals1SCC390009M0018
Environmental
Degree of ProtectionIP65
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginEstonia
Dimensions
Product Net Width98 mm
Product Net Height45 mm
Product Net Depth / Length66 mm
Product Net Weight0.135 kg
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width70 mm
Package Level 1 Depth / Length100 mm
Package Level 1 Height50 mm
Package Level 1 Gross Weight0.14 kg
Package Level 1 EAN6417019422671
Technical
ColorBlack
Degree of ProtectionIP65
Handle ColorBlack
Handle Length65 mm
Handle TypePistol
Special FunctionsJ6TE00S
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC39122230
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3601529
