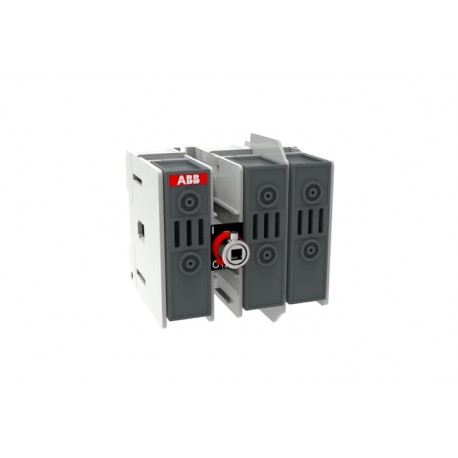

1SCA108824R1001 ABB Fuse switch OS30FAJ12
1SCA108824R1001
1SCA108824R1001
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB fuse switch combines mechanical disconnect functionality with fuse-based overcurrent protection for demanding electrical applications. This device is typically utilized in low-voltage switchboards to safeguard equipment and isolate circuits during maintenance.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Environmental Product Declaration - EPD: 1SCC311204D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311030M0202
- Mechanical Drawings: OS30FAJ12.stp
- Environmental Product Declaration - EPD: 1SCC311204D0201
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Lithuania
- Product Net Width: 143 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311030M0202 |
| Mechanical Drawings | OS30FAJ12.stp |
| Environmental Product Declaration - EPD | 1SCC311204D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Lithuania |
| Dimensions | |
| Product Net Width | 143 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 119 mm |
| Product Net Weight | 0.7 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 240 mm |
| Package Level 1 Depth / Length | 108 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.7 kg |
| Package Level 1 EAN | 6417019420912 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 0.75 … 10 mm² |
| Flexible 0.75 … 10 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 30 A |
| Fuse System | Class J |
| Handle Type | Handle not included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 30 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 30 A |
| (690 V) 30 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 30 A |
| (690 V) 30 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 30 A |
| (690 V) 30 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| (400 V) 15 kW | |
| (415 V) 15 kW | |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
| Recommended Screw Driver | Main Circuit Slot |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 1.5 … 2 N·m |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Main Circuit 0.47…0.55 in | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Main Circuit 250 V DC | |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 7.5 Hp |
| (acc. to UL 480 V) 15 Hp | |
| (acc. to UL 600 V) 20 Hp | |
| Wire Stripping Length | Main Circuit 12...14 mm |
| Main Circuit 0.47…0.55 in | |
| Recommended Screw Driver | Main Circuit Slot |
| Tightening Torque | 1.5 … 2 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 17 in·lb |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311129D2702 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | CULUS CERTIFICATE OS30FA_ |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
