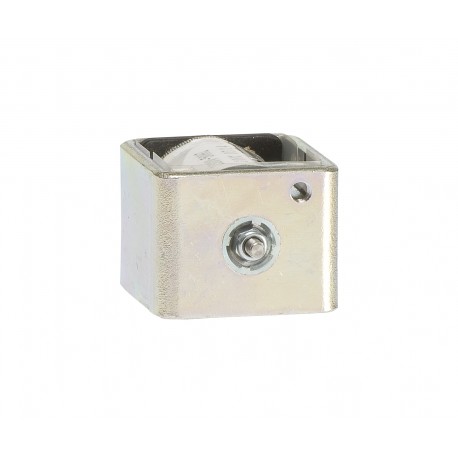

1SCA107103R1001 ABB Elec interlocking coil. PDAL2/48DC
1SCA107103R1001
107103
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Functioning as an electromagnetic locking actuator, the 1SCA107103R1001 ABB Elec interlocking coil. PDAL2/48DC provides automated mechanical interlocking for switchgear and disconnectors based on electrical control signals. Interlocking coils are widely implemented in complex power distribution schemes to prevent mismatched switching states and ensure operator safety during high-voltage operations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: No Instructions and Manuals needed
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85052000
- Country or Territory of Origin: United Kingdom
- Product Net Width: 25.4 mm
- Product Net Height: 32.2 mm
- Product Net Depth / Length: 50.5 mm
- Product Net Weight: 0.15 kg
- Package Level 1Units: 1 piece
- Package Level 1 Width: 50 mm
- Package Level 1 Depth / Length: 60 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | No Instructions and Manuals needed |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85052000 |
| Country or Territory of Origin | United Kingdom |
| Dimensions | |
| Product Net Width | 25.4 mm |
| Product Net Height | 32.2 mm |
| Product Net Depth / Length | 50.5 mm |
| Product Net Weight | 0.15 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 50 mm |
| Package Level 1 Depth / Length | 60 mm |
| Package Level 1 Height | 40 mm |
| Package Level 1 Gross Weight | 0.2 kg |
| Package Level 1 EAN | 6417019405599 |
| Certificates and Declarations | |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39121010 |
| IDEA Granular Category Code (IGCC) | 4143 >> Magnetic coils |
| eClass | V11.1 : 27371392 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3709792 |
