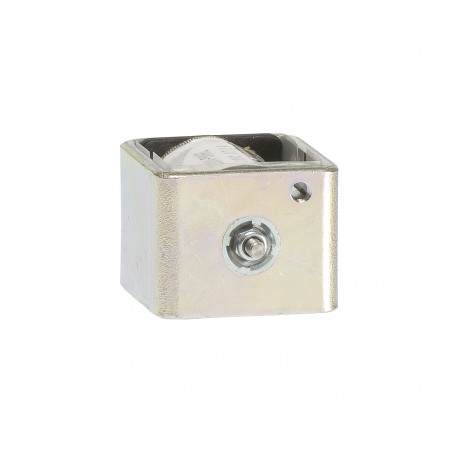

ABB 1SCA107102R1001 1SCA107102R1001 ABB MAG COIL. ENCLA. ELEC. PDAL2/230AC50HZ View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA107102R1001 ABB MAG COIL. ENCLA. ELEC. PDAL2/230AC50HZ

1SCA107102R1001

107102

ABB

1 Pcs.

MAG COIL. ENCLA. ELEC. PDAL2/230AC50HZ PDAL2/230AC50HZ INTERLOCKING MAGNET

Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Abb 1SCA107102R1001 mag coil. encla. elec. pdal2/230ac50hz is a replacement electromagnetic coil designed to actuate enclosed electrical switching devices and starters. It converts electrical energy into precise mechanical movement to open or close contacts within automated power control systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: No Instructions and Manuals needed
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: United Kingdom
  • Product Net Width: 25.4 mm
  • Product Net Height: 32.2 mm
  • Product Net Depth / Length: 50.5 mm
  • Product Net Weight: 0.13 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 50 mm
  • Package Level 1 Depth / Length: 60 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and ManualsNo Instructions and Manuals needed
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginUnited Kingdom
Dimensions
Product Net Width25.4 mm
Product Net Height32.2 mm
Product Net Depth / Length50.5 mm
Product Net Weight0.13 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width50 mm
Package Level 1 Depth / Length60 mm
Package Level 1 Height40 mm
Package Level 1 Gross Weight0.14 kg
Package Level 1 EAN6417019405582
Certificates and Declarations
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC39121010
IDEA Granular Category Code (IGCC)4143 >> Magnetic coils
eClassV11.1 : 27371392
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3709790

Product Datasheet
