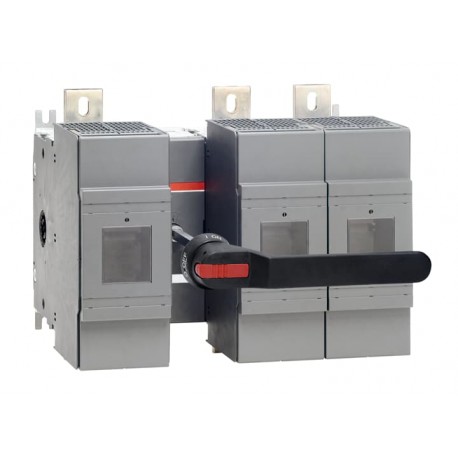

ABB 1SCA105241R1001 1SCA105241R1001 ABB OS1250DA12P Fuse Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105241R1001 ABB OS1250DA12P Fuse Switch

1SCA105241R1001

105241

ABB

1 Pcs.

OS1250DA12P Fuse Switch OS1250DA12P SWITCH FUSE

Connectors > Fuse switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Environmental Product Declaration - EPD1SCC311203D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311022M0207
Mechanical DrawingsOS1250DA12.stp
Environmental Product Declaration - EPD1SCC311203D0201
Environmental
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width432 mm
Product Net Height356 mm
Product Net Depth / Length371 mm
Product Net Weight27.98 kg
61.69 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width394 mm
15.51 in
Package Level 1 Depth / Length534 mm
21.02 in
Package Level 1 Height368 mm
14.49 in
Package Level 1 Gross Weight30.23 kg
66.65 lb
Package Level 1 EAN6417019395692
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 1250 A
Conventional Thermal Current (Ithe)Fully Enclosed 1000 A
Fuse SizeNH4a
Fuse SystemDIN
Handle TypePistol handle and shaft included
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 75 W
Rated Conditional Short-Circuit Current (Inc)(690 V) 80 kA
Rated Current (In)Main Circuit 1250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 1250 A
(500 V) 1250 A
(690 V) 1250 A
Rated Operational Current AC-21B (Ie)(500 V) 1250 A
(690 V) 1250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 1250 A
Rated Operational Current AC-22B (Ie)(500 V) 1250 A
(690 V) 1250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 1000 A
Rated Operational Current AC-23B (Ie)(500 V) 1000 A
(690 V) 1000 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 315 kW
(400 V) 560 kW
(415 V) 560 kW
(500 V) 710 kW
(690 V) 1000 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 40 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism12 (Between the Poles)
Terminal TypeLug terminals
Terminal Width50 mm
Tightening Torque50 ... 75 N·m
Technical UL/CSA
Tightening Torque50 ... 75 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311210D0201
ATEX CertificateNo certification needed
CCC CertificateCCC OS1200-1250 2015.pdf
Declaration of Conformity - CE1SCC311127D2703
DNV GL Certificate1SCC311131D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3661011

ETIM for 1SCA105241R1001 Low-voltage industrial controls and switchgear (EC001040)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as safety switch (EF006985) Yes
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated permanent current Iu (EF001389) 1000 A
Rated operation power at AC-23, 400 V (EF007027) 1000 kW
Conditioned rated short-circuit current Iq (EF001444) 80 kA
Rated short-time withstand current lcw (EF007050) 40 kA
Suitable for fuses (EF006692) NH4a
Number of poles (EF001391) 3
Type of electrical connection of main circuit (EF006819) Bolt connection
Cable entry (EF000537) Other
Equipped with connectors (EF011696) Yes
Suitable for floor mounting (EF007243) No
Suitable for front mounting (EF007246) No
Suitable for busbar mounting (EF007259) Yes
Type of control element (EF006976) Long turning handle
Position control element (EF009410) Front
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Version as emergency stop installation (EF006959) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
