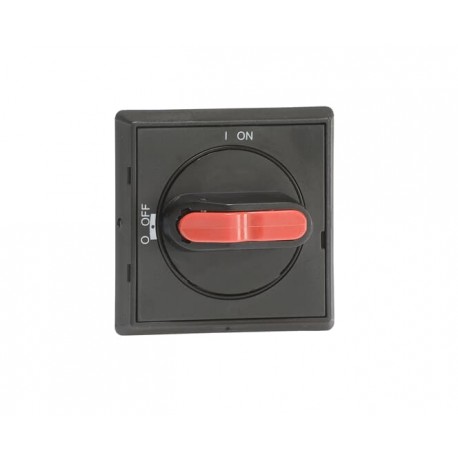

ABB 1SCA105221R1001 1SCA105221R1001 ABB OHBS2AJM Control View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA105221R1001 ABB OHBS2AJM Control

1SCA105221R1001

105221

ABB

1 Pcs.

OHBS2AJM Control OHBS2AJM HANDLE

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Abb 1SCA105221R1001 ABB OHBS2AJM Control functions as a panel-mounted operator handle designed to manually actuate heavy-duty industrial switches and disconnect devices. Control handles of this type route operational input through enclosure walls while preserving environmental sealing for internal electrical components. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390064M0004
  • Mechanical Drawings: 1SCC390177F0001
  • Degree of Protection: IP65
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Lithuania
  • Product Net Width: 65 mm
  • Product Net Height: 65 mm
  • Product Net Depth / Length: 48 mm
  • Product Net Weight: 0.065 kg
  • Package Level 1 Units: 1 piece

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390064M0004
Mechanical Drawings1SCC390177F0001
1SCC390176F0001
OH_S2AJ_palikka.igs
Environmental
Degree of ProtectionIP65
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Country or Territory of OriginLithuania
Dimensions
Product Net Width65 mm
Product Net Height65 mm
Product Net Depth / Length48 mm
Product Net Weight0.065 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width65 mm
Package Level 1 Depth / Length65 mm
Package Level 1 Height48 mm
Package Level 1 Gross Weight0.07 kg
Package Level 1 EAN6417019411460
Technical
ColorBlack
Degree of ProtectionIP65
Handle ColorBlack
Handle TypeSelector
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC31162801
IDEA Granular Category Code (IGCC)3038 >> Handles or knobs
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3661908
E-Number (Norway)4363622
