View larger

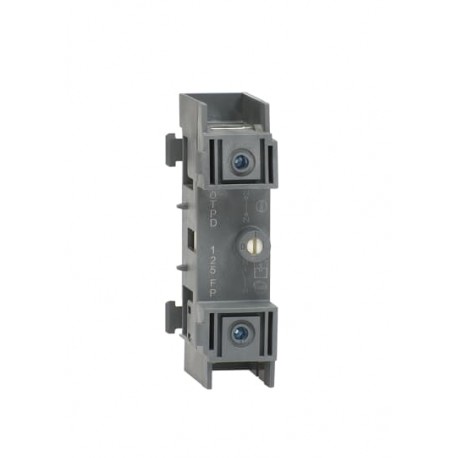

1SCA105083R1001 ABB Neutral separable OT100... 125F3
1SCA105083R1001
105083
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SCA105083R1001 neutral separable pole allows standard three-pole disconnect switches to be expanded for four-pole switching applications in electrical panels. This modular addition ensures that neutral conductors can be disconnected synchronously with phase lines during maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC390069M0003
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Country or Territory of Origin: Finland
- Product Net Width: 26.5 mm
- Product Net Height: 100 mm
- Product Net Depth / Length: 49 mm
- Product Net Weight: 0.115 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 120 mm
- Package Level 1 Depth / Length: 150 mm
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC390069M0003 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 26.5 mm |
| Product Net Height | 100 mm |
| Product Net Depth / Length | 49 mm |
| Product Net Weight | 0.115 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.12 kg |
| Package Level 1 EAN | 6417019392134 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | 125 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 125 A |
| Special Functions | FP |
| Certificates and Declarations | |
| External Classifications and Standards | |
| Object Classification Code | N/A |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| eClass | V11.1 : 27371392 |
| WEEE Category | Product Not in WEEE Scope |
| E-Number (Finland) | 3661025 |
