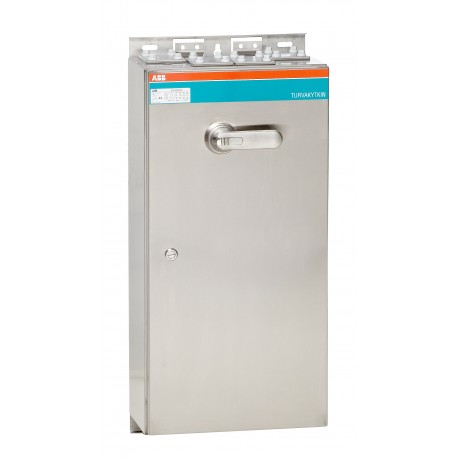

1SCA102317R1001 ABB Int. Boxed disconnector OT315ESUR3TZ
1SCA102317R1001
102317
ABB
1 Pcs.
Int. Boxed disconnector OT315ESUR3TZ
OT315ESUR3TZ Safety switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c9a1f431-d6c1-4906-9013-1c0244d54e3c Finland |
| Simplified SCIP | 16ab1b76-52de-4ece-aa50-331f2d7188ba Germany |
| 822f5b2b-1623-411d-a157-6d5e78873009 Bulgaria | |
| 366ff378-d3b2-49c4-bfed-30617a5ec328 Sweden | |
| f3dc332b-c490-43c2-9dd8-01cd43612c0d Czech Republic | |
| 50673e8f-8008-4ad9-a3b9-6e64653768c2 Germany | |
| cbc86632-bddd-4888-94de-7bad9e806123 Norway | |
| 8da7b5ed-ae42-4d5c-a8be-76e24cac3f93 Spain | |
| 70751579-aec0-47b4-827b-ca99a4b7f6b0 Belgium | |
| 9259313c-e798-4e23-990c-7de942185dd7 Hungary | |
| f40b1c11-69fc-44d2-bc34-8ad9a018be11 Estonia | |
| eb6419b6-a1cf-44bb-8cb8-5663c6f43518 Hungary | |
| 655867e1-038d-4d98-b85c-a5e5905e8053 Portugal | |
| 4a01d1e0-e097-4274-bbd3-4f042dbfcc38 Greece | |
| 9f13c368-1c49-4311-8804-7ee7c8f6d0ab France | |
| 1f53b70d-dcdb-4f78-ba88-d73255ff77b1 Denmark | |
| 385e8976-1d48-4383-aa4e-811367fc2333 Croatia | |
| 9305679a-3203-45c3-9d44-f538f53e1c94 Italy | |
| 2d4b1187-faea-4907-b98e-0c78cdd951c6 Germany | |
| c12e0aa2-4ef7-4f12-9c20-d54ac7e42c9c Germany | |
| ebbfd66c-d7a3-4f12-85b0-695cbd664d4f Belgium | |
| b512ac3c-8e93-475d-a57f-1eb76cfdefef Sweden | |
| e938ac3a-4dcf-462d-8890-0d607f1fea90 Germany | |
| 72fc0372-4eec-4c44-b2cf-e054390c81fa Poland | |
| f3dc332b-c490-43c2-9dd8-01cd43612c0d Czech Republic | |
| a2d75bf6-3901-46a4-81aa-8c537ef5fc12 Netherlands | |
| 05d79b54-d91d-4605-9bef-868500079a4a Poland | |
| 50673e8f-8008-4ad9-a3b9-6e64653768c2 Germany | |
| 9305679a-3203-45c3-9d44-f538f53e1c94 Italy | |
| 4a01d1e0-e097-4274-bbd3-4f042dbfcc38 Greece | |
| 05d79b54-d91d-4605-9bef-868500079a4a Poland | |
| 655867e1-038d-4d98-b85c-a5e5905e8053 Portugal | |
| f40b1c11-69fc-44d2-bc34-8ad9a018be11 Estonia | |
| 2d4b1187-faea-4907-b98e-0c78cdd951c6 Germany | |
| eb6419b6-a1cf-44bb-8cb8-5663c6f43518 Hungary | |
| a2d75bf6-3901-46a4-81aa-8c537ef5fc12 Netherlands | |
| 0704994a-1583-4a5e-869e-f2b640bda887 Poland | |
| ebbfd66c-d7a3-4f12-85b0-695cbd664d4f Belgium | |
| 44bc0569-213a-4a94-8217-58abff50c5ea France | |
| 366ff378-d3b2-49c4-bfed-30617a5ec328 Sweden | |
| 822f5b2b-1623-411d-a157-6d5e78873009 Bulgaria | |
| 72fc0372-4eec-4c44-b2cf-e054390c81fa Poland | |
| 44bc0569-213a-4a94-8217-58abff50c5ea France | |
| 0704994a-1583-4a5e-869e-f2b640bda887 Poland | |
| cbc86632-bddd-4888-94de-7bad9e806123 Norway | |
| b512ac3c-8e93-475d-a57f-1eb76cfdefef Sweden | |
| 1f53b70d-dcdb-4f78-ba88-d73255ff77b1 Denmark | |
| c12e0aa2-4ef7-4f12-9c20-d54ac7e42c9c Germany | |
| 9259313c-e798-4e23-990c-7de942185dd7 Hungary | |
| 9f13c368-1c49-4311-8804-7ee7c8f6d0ab France | |
| 8da7b5ed-ae42-4d5c-a8be-76e24cac3f93 Spain | |
| 70751579-aec0-47b4-827b-ca99a4b7f6b0 Belgium | |
| e938ac3a-4dcf-462d-8890-0d607f1fea90 Germany | |
| 385e8976-1d48-4383-aa4e-811367fc2333 Croatia | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK804023PBL4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 800 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 32.75 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 910 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 34.9 kg |
| Package Level 1 EAN | 6417019371061 |
| Technical | |
| Cable Entry Position | Bottom/Bottom |
| Cable Outlets Per Side | Blank / 4xring-flange+ø25.5mm |
| Color | Stainless |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW |
| (500 V) 200 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642117 |
| E-Number (Sweden) | 3135035 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 315 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 315 A |
| Rated short-time withstand current lcw (EF007050) | 15 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 160 kW |
| Switching power at 400 V (EF009166) | 160 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
