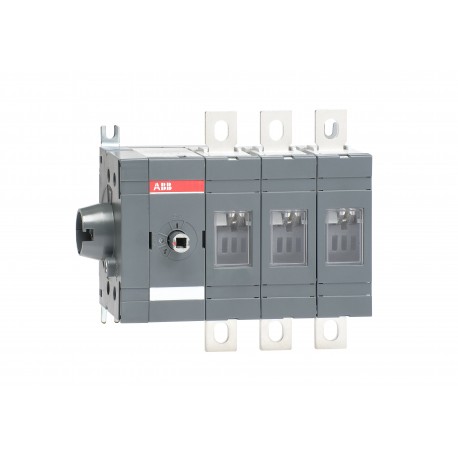

ABB 1SCA022860R0200 1SCA022860R0200 ABB Int. Section. Side control OT200ES03 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022860R0200 ABB Int. Section. Side control OT200ES03

1SCA022860R0200

022860

ABB

1 Pcs.

Int. Section. Side control OT200ES03 Int. Section. control side OT200ES03 OT200ES03 SWITCH-DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301068M0204
Mechanical Drawings1SCC301648F0001
1SCC301647F0001
OT200ES03.igs
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width181.5 mm
Product Net Height150 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width170 mm
6.7 in
Package Level 1 Depth / Length250 mm
9.8 in
Package Level 1 Height155 mm
6.1 in
Package Level 1 Gross Weight1.7 kg
3.7 lb
Package Level 1 EAN6417019308722
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle TypeHandle and shaft not included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeSide
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc)(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 60 kW
(400 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsNo
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
ATEX CertificateNo certification needed
Declaration of Conformity - CE1SCC301131D2705
DNV GL Certificate1SCC301174D0204
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3661701

ETIM for 1SCA022860R0200 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current Iu (EF001389) 200 A
Rated permanent current at AC-23, 400 V (EF011777) 200 A
Rated permanent current at AC-21, 400 V (EF009165) 200 A
Rated short-time withstand current lcw (EF007050) 8 kA
Rated operation power at AC-23, 400 V (EF007027) 110 kW
Switching power at 400 V (EF009166) 110 kW
Conditioned rated short-circuit current Iq (EF001444) 100 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP00
Degree of protection (NEMA) (EF011959) Other
