ABB 1SCA022846R1670 1SCA022846R1670 ABB Int. Engine Switch OTM250E4CM24D View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022846R1670 ABB Int. Engine Switch OTM250E4CM24D

1SCA022846R1670

022846

ABB

1 Pcs.

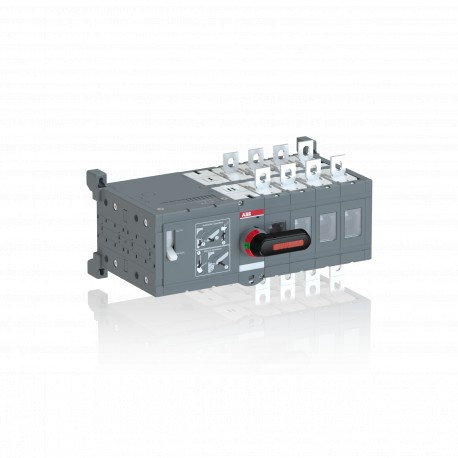

Int. Engine Switch OTM250E4CM24D OTM250E4CM24D MOTORIZED C/O SWITCH

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Automatic transfer switches and motorized changeover devices, such as the Abb 1SCA022846R1670, manage seamless power source transitions between primary lines and backup generators. These units prevent downtime in critical facilities by dynamically routing electrical feeds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC303057M0201
  • Environmental Information: 1SCC303036D0202
  • Environmental Product Declaration - EPD: 1SCC303095D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC303003C0201
  • Instructions and Manuals: 1SCC303002M0206
  • Environmental Product Declaration - EPD: 1SCC303095D0201
  • Degree of Protection: Front IP20
  • Environmental Information: 1SCC303036D0202
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080
  • Country or Territory of Origin: Finland

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC303057M0201
Environmental Information1SCC303036D0202
Environmental Product Declaration - EPD1SCC303095D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC303003C0201
Instructions and Manuals1SCC303002M0206
Environmental Product Declaration - EPD1SCC303095D0201
Environmental
Degree of ProtectionFront IP20
Environmental Information1SCC303036D0202
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width307 mm
12.09 in
Product Net Height150 mm
5.91 in
Product Net Depth / Length197 mm
7.76 in
Product Net Weight5 kg
11.02 lb
Container Information
Package Level 1 Unitsbox 1 box
Package Level 1 Width212 mm
Package Level 1 Depth / Length389 mm
Package Level 1 Height219 mm
Package Level 1 Gross Weight6.4 kg
Package Level 1 EAN6417019296845
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of ProtectionFront IP20
Distance Between PhasesStandard
Fourth Pole PositionRight Side
Fourth Pole TypeSwitched - Simultaneous Function
Handle ColorBlack
Handle TypeDirect mounted handle
Motor Operational Voltage24 V DC
Mounting TypeBase mounting
Number of Poles4P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-31B (Ie)(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)(380 ... 415 V) 250 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 140 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
Switches Operating MechanismMechanism at the End of the Switch
Terminal TypeScrew Terminals
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Transition TypeOpen
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC303031D2702
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3641739

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
