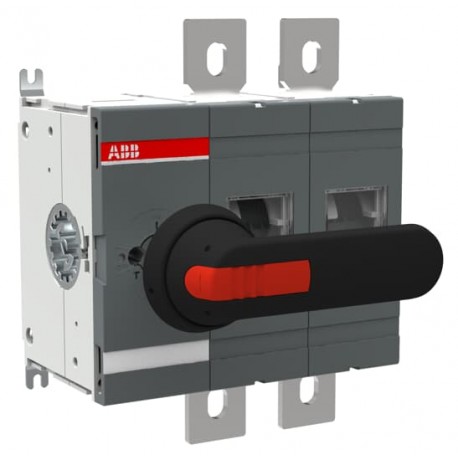

1SCA022835R8310 ABB Fuse Switch OS630D30P

1SCA022835R8310

022835

ABB

1 Pcs.

Fuse Switch OS630D30P OS630D30P SWITCH FUSE

Connectors > Fuse switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Environmental Product Declaration - EPD1SCC311202D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311016M0210
Mechanical DrawingsOS600-800D_J_L30.stp
Environmental Product Declaration - EPD1SCC311202D0201
Environmental
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width343 mm
Product Net Height306 mm
Product Net Depth / Length233 mm
Product Net Weight14.89 kg
32.83 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width328 mm
12.91 in
Package Level 1 Depth / Length365 mm
14.37 in
Package Level 1 Height260 mm
10.24 in
Package Level 1 Gross Weight15.67 kg
34.55 lb
Package Level 1 EAN6417019290935
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 630 A
Conventional Thermal Current (Ithe)Fully Enclosed 570 A
Fuse SizeNH3
Fuse SystemDIN
Handle TypePistol handle and shaft included
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out, Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 46 W
Rated Conditional Short-Circuit Current (Inc)(690 V) 80 kA
Rated Current (In)Main Circuit 630 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 630 A
(690 V) 630 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 630 A
(500 V) 630 A
(690 V) 630 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 200 kW
(400 V) 355 kW
(415 V) 355 kW
(500 V) 450 kW
(690 V) 630 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 18 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism30 (Right Side)
Terminal TypeLug terminals
Terminal Width39 mm
Tightening Torque50 ... 75 N·m
Technical UL/CSA
Tightening Torque50 ... 75 N·m
