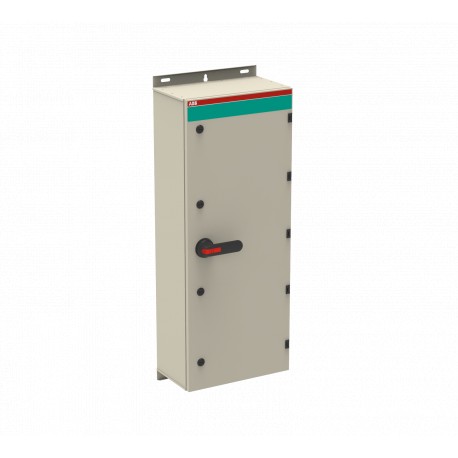

1SCA022830R4570 ABB Int. Boxed disconnector OT800KLUU4BZ
1SCA022830R4570
022830
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Housed in a protective metallic enclosure, the 1SCA022830R4570 ABB Int. Boxed disconnector OT800KLUU4BZ delivers high-capacity load switching and dependable physical isolation for heavy industrial power feeds. Enclosed disconnectors are frequently installed near heavy machinery or external plant locations to protect operating personnel.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC340076D0201
- RoHS Information: 1SCC340075D0201
- Toxic Substances Control Act - TSCA: 1SCC340095D0201
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85363090
- Country of Origin: Finland (FI)
- Data Sheet, Technical Information: 1SCC340015C0201
- Instructions and Manuals: 1SCC340016M0005
- Mechanical Drawings: OTKM104023PBL.stp
- Product Net Width: 400 mm
- Product Net Height: 1000 mm
- Product Net Depth / Length: 230 mm
- Product Net Weight: 28.85 kg
- Rated Operational Current AC-22A (I e ): (380 ... 415 V) 720 A
- Rated Operational Current AC-23A (I e ): (380 ... 415 V) 720 A
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Information | 1SCC340075D0201 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country of Origin | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM104023PBL.stp |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 28.85 kg |
| Technical | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 720 A |
| (690 V) 720 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 720 A |
| (500 V) 720 A | |
| (690 V) 720 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 400 kW |
| (500 V) 500 kW | |
| (690 V) 710 kW | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
| Rated Impulse Withstand Voltage (Uimp) | 20 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Power Loss | at Rated Operating Conditions per Pole 40 W |
| Pollution Degree | 3 |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Standards | IEC 60947-1, -3 |
| Number of Poles | 4 |
| Neutral Type | Switchable neutral |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Recommended Screw Driver | Main Circuit M12 |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | Blank /Blank |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Impact Resistance Rating | Housing IK09 |
| Enclosure Material | Steel sheet |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Tightening Torque | Main Circuit 75 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340029D2704 |
| REACH Declaration | 1SCC340076D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 1110 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 31.3 kg |
| Package Level 1 EAN | 6417019287317 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC000216 - Switch disconnector |
| ETIM 8 | EC000216 - Switch disconnector |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
