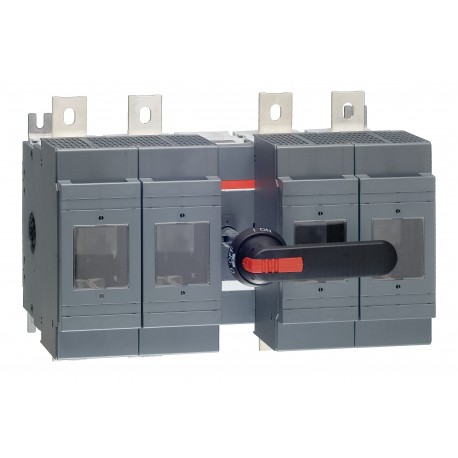

1SCA022826R1660 ABB Fuse switch OS630D22FP
1SCA022826R1660
022826
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB 1SCA022826R1660 OS630D22FP fuse switch handles high-capacity power distribution needs by combining manual load disconnection with cartridge fuse safeguarding. These robust devices are deployed in primary electrical switchboards to protect heavy industrial installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Environmental Product Declaration - EPD: 1SCC311202D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311016M0210
- Mechanical Drawings: OS630-800D22F.stp
- Environmental Product Declaration - EPD: 1SCC311202D0201
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
- Product Net Width: 429 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311202D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311016M0210 |
| Mechanical Drawings | OS630-800D22F.stp |
| Environmental Product Declaration - EPD | 1SCC311202D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 429 mm |
| Product Net Height | 306 mm |
| Product Net Depth / Length | 233 mm |
| Product Net Weight | 19.654 kg |
| 43.33 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 328 mm |
| 12.91 in | |
| Package Level 1 Depth / Length | 453 mm |
| 17.83 in | |
| Package Level 1 Height | 260 mm |
| 10.24 in | |
| Package Level 1 Gross Weight | 20.574 kg |
| 45.36 lb | |
| Package Level 1 EAN | 6417019284323 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 630 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | NH3 |
| Fuse System | DIN |
| Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 46 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 630 A |
| (690 V) 630 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| Rated Operational Current AC-23B (Ie) | (380 ... 415 V) 630 A |
| (500 V) 630 A | |
| (690 V) 630 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 200 kW |
| (400 V) 355 kW | |
| (415 V) 355 kW | |
| (500 V) 450 kW | |
| (690 V) 630 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 18 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 39 mm |
| Tightening Torque | 50 ... 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | 50 ... 75 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS630-800 2016 |
| Declaration of Conformity - CE | 1SCC311112D2704 |
| DNV GL Certificate | 1SCC311131D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661528 |
