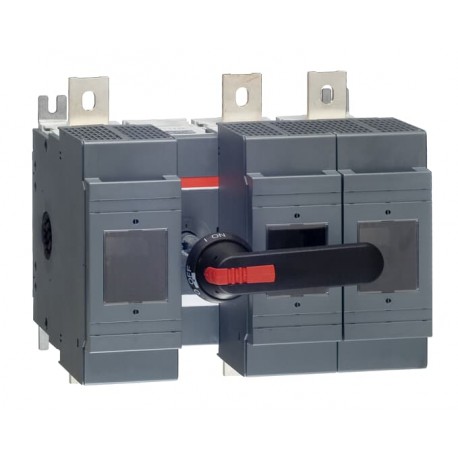

1SCA022825R7550 ABB Fuse switch OS800B03P
1SCA022825R7550
022825
ABB
1 Pcs.
Connectors > Fuse switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
1SCA022825R7550 ABB Fuse switch OS800B03P is an ABB fuse switch designed to combine the switching capabilities of a disconnector with overcurrent fuse protection in demanding electrical networks. Such components are commonly integrated into heavy-duty switchboards to protect downstream infrastructure from short circuits and overloads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- Environmental Product Declaration - EPD: 1SCC311202D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC311013C0201
- Instructions and Manuals: 1SCC311016M0210
- Mechanical Drawings: os800b03n3.stp
- Degree of Protection: acc. to IEC 60529 IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85365080
- Country or Territory of Origin: Finland
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311202D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311016M0210 |
| Mechanical Drawings | os800b03n3.stp |
| Environmental Product Declaration - EPD | 1SCC311202D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 343 mm |
| Product Net Height | 306 mm |
| Product Net Depth / Length | 233 mm |
| Product Net Weight | 13.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 328 mm |
| Package Level 1 Depth / Length | 365 mm |
| Package Level 1 Height | 260 mm |
| Package Level 1 Gross Weight | 13.5 kg |
| Package Level 1 EAN | 6417019283913 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 800 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 720 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | C1-C3 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 75 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 800 A |
| (690 V) 800 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 800 A |
| (500 V) 800 A | |
| (690 V) 800 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 800 A |
| (500 V) 800 A | |
| (690 V) 800 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 250 kW |
| (400 V) 450 kW | |
| (415 V) 450 kW | |
| (500 V) 560 kW | |
| (690 V) 710 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 18 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 39 mm |
| Tightening Torque | 50 ... 75 N·m |
| Technical UL/CSA | |
| Tightening Torque | 50 ... 75 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS630-800 2016 |
| Declaration of Conformity - CE | 1SCC311112D2704 |
| DNV GL Certificate | 1SCC311131D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
