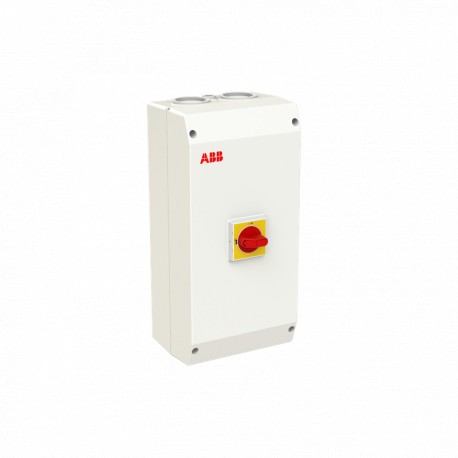

ABB 1SCA022812R5990 1SCA022812R5990 ABB Int. Boxed disconnector OTE75A3M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022812R5990 ABB Int. Boxed disconnector OTE75A3M

1SCA022812R5990

022812

ABB

1 Pcs.

Int. Boxed disconnector OTE75A3M OTE75A3M EMC safety switch

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340003M0016
9AKK108466A4485
Mechanical DrawingsOTPK402014SM50.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363030
Last Ordering Date2026-08-31 All Countries
Replacement Product ID (NEW)OTE80GA3M
Country or Territory of OriginFinland
Dimensions
Product Net Width200 mm
Product Net Height400 mm
Product Net Depth / Length140 mm
Product Net Weight3.4 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width213 mm
Package Level 1 Depth / Length417 mm
Package Level 1 Height197 mm
Package Level 1 Gross Weight3.6 kg
Package Level 1 EAN6417019274751
Technical
Cable Cross-Section10 ... 70 mm²
Cable Entry PositionTop and/or Bottom
Cable Outlets Per Side2xM50+M16 / 2xM50+M16
Connecting Capacity Main CircuitScrew Clamp 10 ... 70 mm²
Screw Clamp / PE Terminal 4pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 115 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialPlastic
Handle ColorRed / Yellow
Handle TypeSelector handle
Impact Resistance RatingHousing IK08
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts1 NO, 0 NC
Neutral TypeFixed Neutral
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO1
Number of Poles3P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 100 A
(500 V) 100 A
(690 V) 100 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 80 A
(500 V) 60 A
(690 V) 40 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 37 kW
(500 V) 37 kW
(690 V) 37 kW
Rated Operational VoltageMain Circuit 750 V
Rated Short-Circuit Making Capacity (Icm)(690 V AC) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 2.5 kA
Recommended Screw DriverMain Circuit Hexagon 4
Special FunctionsEMC
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 6 N·m
Wire Stripping Length20 mm
Technical UL/CSA
Wire Stripping Length20 mm
Recommended Screw DriverMain Circuit Hexagon 4
Tightening TorqueMain Circuit 6 N·m
Certificates and Declarations
BV Certificate1SCC340018D0204
Declaration of Conformity - CE1SCC340004D2705
DNV GL Certificate1SCC340045D0203
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Norway)1429431

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
