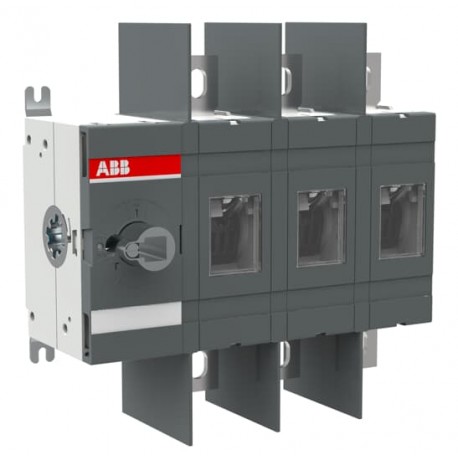

1SCA022809R8490 ABB OT400E03W disconnect switch

1SCA022809R8490

1SCA022809R8490

ABB

1 Pcs.

OT400E03W disconnect switch OT400E03W SWITCH-DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SCA022809R8490 ABB OT400E03W disconnect switch is an electromechanical switching device utilized in industrial electrical panels to safely isolate circuits during maintenance and emergency situations. Such components interrupt power feeds to downstream machinery, protecting personnel and preventing accidental energization.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • End Of Life Disassembling Instructions: 1SCC301118M0201
  • Environmental Information: 1SCC301266D0201
  • Environmental Product Declaration - EPD: 1SCC301283D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC301035M0019
  • Environmental Product Declaration - EPD: 1SCC301283D0201
  • Degree of Protection: Front IP00
  • Environmental Information: 1SCC301266D0201
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301118M0201
Environmental Information1SCC301266D0201
Environmental Product Declaration - EPD1SCC301283D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301035M0019
Environmental Product Declaration - EPD1SCC301283D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301266D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width221 mm
Product Net Height185 mm
Product Net Depth / Length107 mm
Product Net Weight3 kg
6.7 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width250 mm
9.8 in
Package Level 1 Depth / Length290 mm
11.4 in
Package Level 1 Height170 mm
6.7 in
Package Level 1 Gross Weight3.3 kg
7.3 lb
Package Level 1 EAN6417019272443
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 400 A
Conventional Thermal Current (Ithe)Fully Enclosed 400 A
Degree of ProtectionFront IP00
Distance Between PhasesWide phase distance
Handle TypeHandle and shaft not included
Mechanical Durability16000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 10 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 400 A
(500 V) 400 A
(690 V) 400 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 132 kW
(400 ... 415 V) 230 kW
(500 V) 280 kW
(690 V) 400 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 65 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 15 kA
Special FunctionsWide phase distance
StandardsIEC 60947-3
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeLug terminals
Tightening Torqueacc. IEC 60947-1 30 … 44 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 30 … 44 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
Declaration of Conformity - CE1SCC301135D2704
DNV GL Certificate1SCC301174D0204
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
