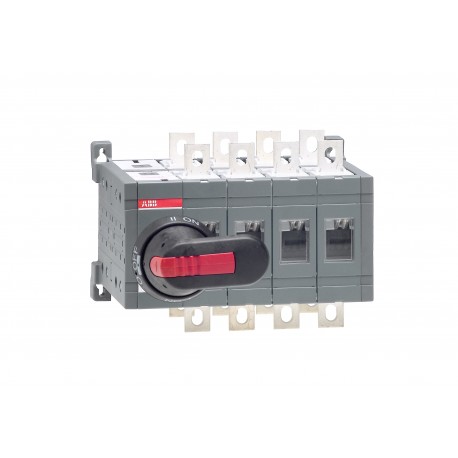

1SCA022775R0650 ABB Switch OT200E04WCP
1SCA022775R0650
022775
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SCA022775R0650 is a switch disconnector commonly utilized in electrical distribution boards to safely control and isolate power feeds under load conditions. These robust switching devices provide reliable circuit disconnection for machinery, control panels, and commercial building infrastructure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC303050M0201
- Environmental Information: 1SCC303050D0201
- Environmental Product Declaration - EPD: 1SCC303082D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 3c1c1ed3-8d6a-4015-9699-3dc7cd576b8c Finland
- Simplified SCIP: cabe0730-ada2-4df5-9fab-dcb1ae8dc2b9 Germany
- Data Sheet, Technical Information: 1SCC303003C0201
- Instructions and Manuals: 1SCC303008M0208
- Degree of Protection: Front IP20
- Pollution Degree: 3
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3c1c1ed3-8d6a-4015-9699-3dc7cd576b8c Finland |
| Simplified SCIP | cabe0730-ada2-4df5-9fab-dcb1ae8dc2b9 Germany |
| 5428b0f8-bac4-463b-be61-afafecba6d18 Denmark | |
| e3b481d9-c2ac-4dc2-a219-fc289083bc9b Belgium | |
| d512c300-444d-4558-8804-bcc7d86e5f1c Italy | |
| 00bada78-a205-4945-8402-7ea022b1a1dc Estonia | |
| d2c0d3e4-f865-4fc1-b1cc-7a593dad4ff4 Portugal | |
| f98cb620-985e-4bf1-b101-76e3fdad4801 Poland | |
| 2aa0e5e5-50d5-4389-894b-5850972515ac Netherlands | |
| 15b85b81-4ea7-4ac5-af3d-f47041793d29 Croatia | |
| 9bc61e88-44fc-4872-b2c1-9446aa7a605b Germany | |
| 431dfcdb-77ff-4af7-896b-a23e15138432 Germany | |
| b975a4d1-bd6d-4c60-916d-1a00f5b80b0f Poland | |
| 61d9005b-1d0c-4913-82ea-133be3ca786e Czech Republic | |
| 92df5421-3c6a-4c26-9d75-5b842e7a9c1c Hungary | |
| 15d660c9-3a8b-439b-a54b-567491f0e8cb Germany | |
| 9c4ccc44-7a31-4502-a6c8-582bff304095 Norway | |
| 457aeeb0-2cbd-4ed5-bc2d-67e36487b631 Hungary | |
| 3ef5d90e-fc82-4b8e-8f54-7c8576697deb Spain | |
| cd5cd19a-6385-4e0e-8242-e6666dea00b6 Bulgaria | |
| a98f9bb3-96e6-4b89-bada-be2efc3bcc2f Germany | |
| 45f2569e-421e-4dd3-9991-054c349534d5 Belgium | |
| 9102f4dc-70f8-4e0e-8139-61fd1a382c45 Poland | |
| 74cddfd6-2350-4004-b8e7-e22fbe15af42 France | |
| 3da4198b-edbd-4ed8-a6aa-3d50e6efe458 Sweden | |
| ef4cd03f-7238-426e-91b0-d6c96b075558 Sweden | |
| e57c8c03-73fe-4550-9f45-be22f65a9361 France | |
| 2da073c4-66ff-4601-b172-507370c0e64b Greece | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 237 mm |
| 9.33 in | |
| Product Net Height | 170 mm |
| 6.69 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 4.18 kg |
| 9.22 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 186 mm |
| 7.32 in | |
| Package Level 1 Depth / Length | 300 mm |
| 11.81 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 4.45 kg |
| 9.81 lb | |
| Package Level 1 EAN | 6417019252247 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Wide phase distance |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Screw Terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Open |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303001D2704 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641541 |
