> ABB > Manual Switches > 022745

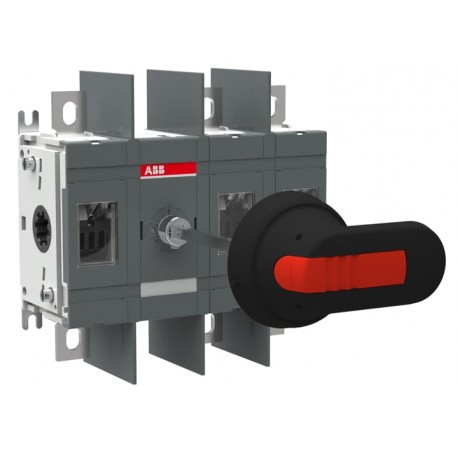

ABB 1SCA022745R0000 1SCA022745R0000 ABB Disconnector switch OT250E12WP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022745R0000 ABB Disconnector switch OT250E12WP

1SCA022745R0000

022745

ABB

1 Pcs.

Disconnector switch OT250E12WP OT250E12WP SWITCH-DISCONNECTOR

Connectors > Switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPabf2ff94-3064-4e3e-bb29-dbff40b347d6 Finland
Simplified SCIP1c93b357-5438-4177-b4e3-17e634c2e522 Germany
9143f3a2-1531-4d7f-a5fb-f85e6875a7d9 Sweden
dc7d42b0-0cc9-4c7f-97f7-013bbf42dda4 Poland
79382cdf-f04d-4e8e-b6d5-05ccbd6ae995 Germany
a4e99a20-a91d-465f-981f-0e3eb4329f1c Poland
9109410c-4031-49d2-a49d-c5b386738507 Spain
cc8b3a0c-a305-42df-add8-66998244fd16 Denmark
9fd94788-3bcf-40ae-9ccb-e9064d892cd9 Belgium
09efe703-2023-404c-bc32-a58eac735586 Belgium
e5a2db91-f5fc-46af-a346-b291386db86f Greece
2ae5992d-591d-430f-954a-e7c34074494d Portugal
f881e589-1599-41c2-9ac3-fae3c5b5ff80 Netherlands
8f63c77a-35c4-4ffb-8744-5af8fb33a0fb Germany
e15f2f56-9d79-4e01-8b9c-735d11b43dec Sweden
f4b7ce54-223c-429a-b300-e5a03f91f479 Germany
dd82f87a-f81a-42cd-bd4e-2ab23130f1a5 France
9fee1051-9dda-4aa3-9e9d-36a4a7aba434 Hungary
b16f84b8-6379-4542-b738-5e5ff3b97940 Italy
9c00bda7-23e5-499d-a9b5-0d464dc8ad71 Germany
549cebe2-55ad-4899-b18d-8f865ce228b6 Czech Republic
0a9e895b-09a6-4e04-a3dd-16bd511dd721 Poland
57179fdc-50b9-4f56-aa46-2802a773c7f1 Estonia
26a2aabe-f2e3-4192-9a97-59d5c4fb8641 Hungary
5d7e6a19-5059-4799-abc5-53fec007aa65 Croatia
72d14a51-d64b-45ac-826a-d55e6276b9ca Norway
2e437ca1-cc6d-47b6-9c98-afbe1de05702 France
c22b521e-9ecf-485f-b17b-3a7b62cec57b Bulgaria
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301031M0220
Mechanical Drawings1SCC301294F0001
1SCC301293F0001
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width174.5 mm
Product Net Height170 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.5 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width190 mm
7.5 in
Package Level 1 Depth / Length290 mm
11.4 in
Package Level 1 Height110 mm
4.3 in
Package Level 1 Gross Weight1.7 kg
3.7 lb
Package Level 1 EAN6417019241692
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of ProtectionFront IP00
Distance Between PhasesWide phase distance
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Conditional Short-Circuit Current (Inc)(315 A fuse, 500 V) 100 kA
(355 A fuse, 690 V) 80 kA
(250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 75 kW
(400 ... 415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsWide phase distance
StandardsIEC 60947-3
Switches Operating MechanismMechanism Between the Poles
12 (Between the Poles)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Technical UL/CSA
Tightening Torqueacc. IEC 60947-1 15 … 22 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC301337D0201
ATEX CertificateNo certification needed
BV Certificate1SCC301103D0201
Declaration of Conformity - CE1SCC301131D2705
DNV GL Certificate1SCC301174D0204
GL Certificate1SCC301139D0201
LR Certificate1SCC301144D0201
UL CertificateNo certification needed
VDE CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122221
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3661332
E-Number (Norway)4337886
E-Number (Sweden)3171192

ETIM for 1SCA022745R0000 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) Yes
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 1
Max. rated operation voltage Ue AC (EF007355) 1000 V
Rated operating voltage (EF001435) 1000 V
Rated permanent current Iu (EF001389) 250 A
Rated permanent current at AC-23, 400 V (EF011777) 250 A
Rated permanent current at AC-21, 400 V (EF009165) 250 A
Rated short-time withstand current lcw (EF007050) 8 kA
Rated operation power at AC-23, 400 V (EF007027) 145 kW
Switching power at 400 V (EF009166) 145 kW
Conditioned rated short-circuit current Iq (EF001444) 100 kA
Number of poles (EF001391) 3
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) No
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) No
Device construction (EF008240) Complete device in housing
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Colour control element (EF007167) Black
Type of control element (EF006976) Long turning handle
Interlockable (EF006281) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP00
Degree of protection (NEMA) (EF011959) Other
