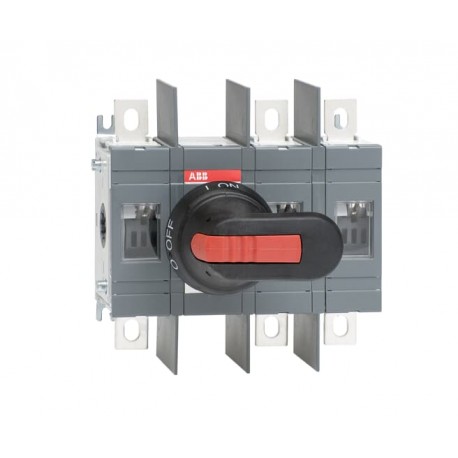

1SCA022744R3300 ABB Disconnector switch OT200E22WP
1SCA022744R3300
022744
ABB
1 Pcs.
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing dependable power interruption for demanding electrical systems, the ABB 1SCA022744R3300 ABB Disconnector switch OT200E22WP functions as a primary load-breaking device. Industrial switchgear setups incorporate these components to guarantee safe manual circuit disconnection during maintenance tasks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- End Of Life Disassembling Instructions: 1SCC301117M0201
- Environmental Information: 1SCC301265D0201
- Environmental Product Declaration - EPD: 1SCC301282D0201
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- REACH Declaration: 1SCC011021D0201
- RoHS Declaration: 1SCC011020D0201
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- SCIP: 3730119c-4d9b-4114-a6ed-d984e2a688c3 Finland
- Simplified SCIP: 8898763a-ee0c-440c-b871-efb3b0a1e2d0 Germany
- Toxic Substances Control Act - TSCA: 1SCC011025D0201
- Data Sheet, Technical Information: 1SCC301020C0201
- Instructions and Manuals: 1SCC301031M0220
- Mechanical Drawings: 1SCC301296F0001
- Environmental Product Declaration - EPD: 1SCC301282D0201
- Degree of Protection: Front IP00
- Environmental Information: 1SCC301265D0201
More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 3730119c-4d9b-4114-a6ed-d984e2a688c3 Finland |
| Simplified SCIP | 8898763a-ee0c-440c-b871-efb3b0a1e2d0 Germany |
| d58b0a5e-1c81-4e45-aa27-06306b87b64e Portugal | |
| 8a4949f1-f170-4966-9494-9f44ebd87513 Poland | |
| 0e79b20b-4d3f-4c68-a267-5408a0a7b4aa Croatia | |
| 933a9138-025a-4a86-a1ef-34d698e19333 Germany | |
| 7be3265b-fe00-487c-9453-5960b7c079b8 Belgium | |
| c5fdaef4-b50d-4388-9628-9c907e1ef65f Denmark | |
| 5ed668b7-9a61-43f3-8cf8-6faa40939e25 Germany | |
| 19f0a1e4-54c0-449a-876d-19f80b9ac85a Sweden | |
| fae1f70c-ce09-4f3b-83be-065db6269153 Bulgaria | |
| 2f289856-daa5-4187-9f5c-6773bd6c068f Hungary | |
| d21e0cb5-040a-4f9d-9183-fcf7a2245c87 Germany | |
| 23c201d8-e73f-4e9a-b7bd-bd25054ccb4a France | |
| 6b52e89e-1ff1-4216-8311-4910f608014f Italy | |
| 53e7b861-47e5-4f0b-ae73-8ae722668507 France | |
| 932e74b6-0fdd-4b6a-a3f4-8819f06ffd0d Hungary | |
| 2502610e-959d-475c-a8c7-57447ce2e153 Estonia | |
| bd6c7858-a381-4494-a4bd-681842feb1d3 Netherlands | |
| f0854ee9-f59f-4db7-9785-efc1e77e9e43 Sweden | |
| 024237bb-d75f-4b72-af2d-669bb146bbce Germany | |
| aa70cccb-7d66-4115-8b0d-934e7b575611 Spain | |
| 75686dac-3894-4f8d-b63b-c1dac6ad8298 Belgium | |
| 675a8151-663f-45a3-9cf8-588bbdf6d0e8 Norway | |
| 40463db5-b928-4ed3-af0b-2a78ed525e46 Poland | |
| 892d6fe7-e3df-454e-b56c-5b49ed1cb65a Greece | |
| 0b8de3d5-0b5c-457c-830d-f2852d4cb934 Czech Republic | |
| f12ac7de-bec3-4a88-ba90-7fca5b127f69 Poland | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301296F0001 |
| 1SCC301295F0001 | |
| OT200-250E22W.stp | |
| OT200-250E22W.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 217.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm |
| 7.5 in | |
| Package Level 1 Depth / Length | 290 mm |
| 11.4 in | |
| Package Level 1 Height | 110 mm |
| 4.3 in | |
| Package Level 1 Gross Weight | 2.4 kg |
| 5.3 lb | |
| Package Level 1 EAN | 6417019241395 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Wide phase distance |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 4.0 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA |
| (355 A fuse, 690 V) 80 kA | |
| (250 A fuse, 690 V) 100 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 ... 415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | Wide phase distance |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism Between the Poles |
| 22 (Between the Poles) | |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| ATEX Certificate | No certification needed |
| BV Certificate | 1SCC301103D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| GL Certificate | 1SCC301139D0201 |
| LR Certificate | 1SCC301144D0201 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661324 |
| E-Number (Norway) | 4337883 |
