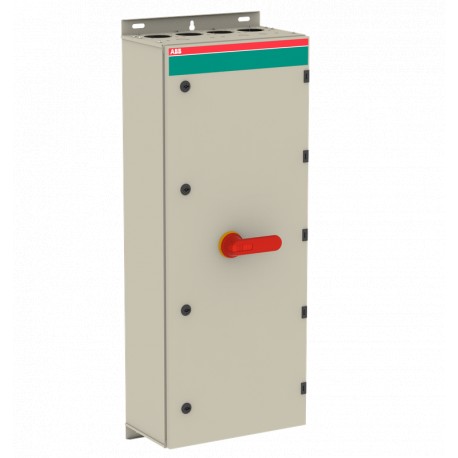

1SCA022742R3880 ABB Int. Section. EMC OT630KTRR3AZ Boxed
1SCA022742R3880
1SCA022742R3880
ABB
1 Pcs.
Int. Section. EMC OT630KTRR3AZ Boxed
OT630KTRR3AZ EMC safety switch
Connectors > Switch disconnector
Manual Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c58a0137-984b-4ead-ab29-9b5a35a96f8f Finland |
| Simplified SCIP | 21af7741-cb7b-43a7-ad95-0086712d3fc7 Germany |
| e252cde7-4897-457e-9469-567f29ec1397 Hungary | |
| 7bf9b6cf-6f41-4d35-8e91-c2f210e05443 Spain | |
| 0e6cba54-a499-469d-b096-6a952d2c0e5c Belgium | |
| 6c522152-61ee-4dee-840c-d087e68aeac9 France | |
| ee28857e-ecfb-431f-bda0-d2cde6fdc5ac Germany | |
| 7ee8a07a-5acc-4ad1-8e17-e87b897395bd Germany | |
| 39c7e935-b175-4ac0-b3af-3bd3873dfead Croatia | |
| 1d28e461-8b59-4c89-970e-b0c4a64f6987 Germany | |
| 686afd41-0abc-4bf1-b045-aef4bea7a220 Czech Republic | |
| 6f98c79c-ea48-4b87-84e9-0ab950025505 Belgium | |
| 6d900b15-833f-4944-a94d-f42acd81ee72 Bulgaria | |
| 21afd7f7-1e46-41b4-9eb9-392a11845b0c Portugal | |
| 840e37c3-723f-4d51-b599-57952bcffb8f Greece | |
| 292fdbe4-7e11-4f4c-9b37-097947792f0a France | |
| f7111ea4-9a33-439b-8f6b-e2eff894a2f7 Sweden | |
| 1fd758a0-b843-4fc9-bb2f-4b8a60e20e76 Norway | |
| a5585c16-b826-4510-8780-530f2b0f52d2 Poland | |
| f29c7773-24b1-48ad-bac5-82e04007e22c Sweden | |
| be6458dc-1c09-41d1-8725-199500c3eef4 Poland | |
| 977c73a1-f35d-4d89-8dd8-53920be21059 Netherlands | |
| 4dfd4e46-e243-4598-994e-d74af65e20b1 Poland | |
| 3e0dda94-561f-4136-bf03-bcec4eafd434 Germany | |
| ed024be3-d156-4d92-a776-bb0c71c7cb26 Italy | |
| f1f1c19f-dba1-49d3-a14b-f0b2bdd963a3 Denmark | |
| 31162b2d-bdd2-4b57-95bc-5248e1200a66 Estonia | |
| 37bb413f-1a4d-4a0f-a3f1-d33a297c1671 Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340016M0005 |
| Mechanical Drawings | OTKM104023P4R.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 28.55 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 1110 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 31 kg |
| Package Level 1 EAN | 6417019240572 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange / 4xring-flange, Knock-outs: 3x10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW |
| (500 V) 400 kW | |
| (690 V) 560 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340029D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 570 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 570 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 315 kW |
| Switching power at 400 V (EF009166) | 315 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
