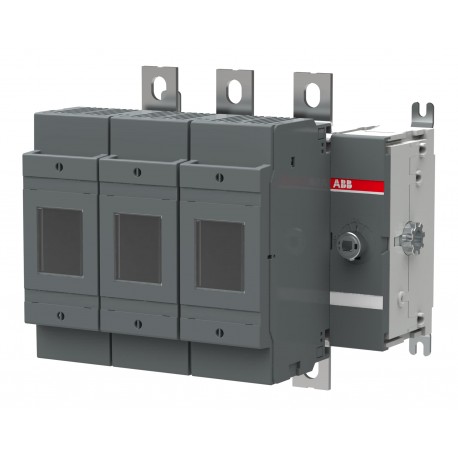

ABB 1SCA022726R9600 1SCA022726R9600 ABB Fuse Switch OS250D30 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022726R9600 ABB Fuse Switch OS250D30

1SCA022726R9600

1SCA022726R9600

ABB

1 Pcs.

Fuse Switch OS250D30 OS250D30 SWITCH FUSE

Connectors > Fuse switch disconnector
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB Fuse Switch OS250D30 combines load break switching with integrated fuse links to provide dependable circuit protection in commercial and industrial electrical panels. These units are standard in power distribution systems requiring manual isolation combined with robust fault current interruption.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • End Of Life Disassembling Instructions: 1SCC311049M0201
  • Environmental Product Declaration - EPD: 1SCC311197D0201
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Toxic Substances Control Act - TSCA: 1SCC011025D0201
  • Data Sheet, Technical Information: 1SCC311013C0201
  • Instructions and Manuals: 1SCC311012M0219
  • Mechanical Drawings: OS250D_B30.stp
  • Degree of Protection: acc. to IEC 60529 IP20
  • Pollution Degree: 3
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85365080

More info

▲
ABB EcoSolutions
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions1SCC311049M0201
Environmental Product Declaration - EPD1SCC311197D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC311013C0201
Instructions and Manuals1SCC311012M0219
Mechanical DrawingsOS250D_B30.stp
Environmental Product Declaration - EPD1SCC311197D0201
Environmental
Degree of Protectionacc. to IEC 60529 IP20
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width208 mm
Product Net Height199 mm
Product Net Depth / Length154 mm
Product Net Weight3.9 kg
8.6 lb
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width230 mm
9.1 in
Package Level 1 Depth / Length270 mm
10.6 in
Package Level 1 Height170 mm
6.7 in
Package Level 1 Gross Weight4.2 kg
9.2 lb
Package Level 1 EAN6417019235226
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 250 A
Conventional Thermal Current (Ithe)Fully Enclosed 250 A
Degree of Protectionacc. to IEC 60529 IP20
Fuse SizeNH0
NH1
Fuse SystemDIN
Handle TypeHandle not included
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Current 17 W
Rated Conditional Short-Circuit Current (Inc)(690 V) 100 kA
Rated Current (In)Main Circuit 250 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current AC-21A (Ie)(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe)(220 ... 240 V) 75 kW
(400 V) 140 kW
(415 V) 145 kW
(500 V) 170 kW
(690 V) 250 kW
Rated Operational VoltageMain Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kiloampere rms
StandardsIEC 60947-3
Switches Operating Mechanism30 (Right Side)
Terminal TypeLug terminals
Terminal Width25 mm
Tightening Torque30 ... 44 N·m
Technical UL/CSA
Tightening Torque30 ... 44 N·m
Certificates and Declarations
A2L Certificate – IEC1SCC311209D0201
ATEX CertificateNo certification needed
CCC CertificateCCC OS200-250 2016
Declaration of Conformity - CE1SCC311095D2704
DNV GL Certificate1SCC311123D0203
UL CertificateNo certification needed
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC001040 - Fuse switch disconnector
ETIM 10EC001040 - Fuse switch disconnector
UNSPSC39122233
IDEA Granular Category Code (IGCC)5291 >> Fuse switch disconnector
eClassV11.1 : 27371401
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
