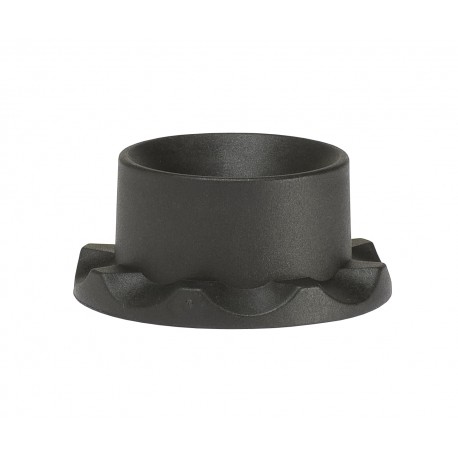

ABB 1SCA022708R3170 1SCA022708R3170 ABB OHZX11 alignment ring View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SCA022708R3170 ABB OHZX11 alignment ring

1SCA022708R3170

022708

ABB

1 Pcs.

OHZX11 alignment ring OHZX11 ALIGNMENT RING

Automation > Handle for power circuit breaker
Manual Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The ABB OHZX11 alignment ring (1SCA022708R3170) serves as a mechanical installation accessory designed to ensure proper concentric alignment when mounting rotary handles onto switchgear panel doors. Alignment components simplify installation accuracy and maintain structural integrity across various electrical distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • REACH Declaration: 1SCC011021D0201
  • RoHS Declaration: 1SCC011020D0201
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Data Sheet, Technical Information: 1SCC301020C0201
  • Instructions and Manuals: 1SCC390031M0004
  • Minimum Order Quantity: 10 piece
  • Customs Tariff Number: 85389099
  • Country or Territory of Origin: Lithuania
  • Product Net Width: 50 mm
  • Product Net Height: 50 mm
  • Product Net Depth / Length: 10 mm
  • Product Net Weight: 0.025 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 50 mm
  • Package Level 1 Depth / Length: 50 mm

More info

▲
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC390031M0004
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85389099
Country or Territory of OriginLithuania
Dimensions
Product Net Width50 mm
Product Net Height50 mm
Product Net Depth / Length10 mm
Product Net Weight0.025 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width50 mm
Package Level 1 Depth / Length50 mm
Package Level 1 Height10 mm
Package Level 1 Gross Weight0.03 kg
Package Level 1 EAN6417019233550
Certificates and Declarations
Declaration of Conformity - CE1SCC390030D2704
External Classifications and Standards
Object Classification CodeN/A
ETIM 9EC000229 - Handle for power circuit breaker
ETIM 10EC000229 - Handle for power circuit breaker
UNSPSC39122221
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
eClassV11.1 : 27370414
WEEE CategoryProduct Not in WEEE Scope
E-Number (Finland)3641197

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
